Compact Clamp Meter, 400 A, 40 mOhm, 50 to 500 Hz, LED Display
PartFIESC260
MFGSC260
Description
Fieldpiece Clamp Meter, Compact, 400 A Electrical Rating, 40 mOhm Resistance, 50 to 500 Hz Frequency, 4000 Count, LED Display, 100 ms AC Response, Safety Rating: 600 V, Alkaline Battery Power Source, 32 to 122 deg F Operating, 205.5 mm H x 67.4 mm W x 45.1 mm D Dimensions
Price/Availability Accessible On Login
Documentation
- Volts AC/DC
- True RMS
- 400 Amps AC
- Temperature F/C
- Capacitance
- Non-contact voltage
- 40 Mega Ohm with 0.01 resolution
- Continuity
- Diode Test
- Max/Min/Hold
- LCD Backlight
- Low Battery Indicator
- Hi-voltage Warning

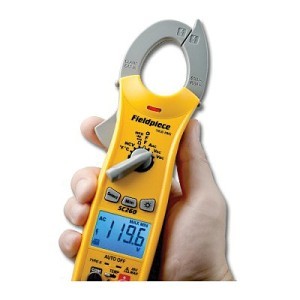

The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places, and a sturdy swivel magnet for hands free measurements. The SC260 helps you save time with the new Auto Select mode. Simply set the dial and connect your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.
| Type | Clamp Meter |
| AC Response | 100 |
| Counts | 4000 |
| Dimensions | 205.5 mm H x 67.4 mm W x 45.1 mm D |
| Display Type | LED |
| Electrical Ratings | 400 A |
| Frequency Rating | 50 to 500 Hz |
| Operating Temperature | 32 to 122 deg F |
| Power Source | Alkaline Battery |
| Resistance | 40 MOhm |
| Safety Rating | 600 |
| Brand | Fieldpiece |
| UNSPSC | 41113708 |
| Country of Origin | TW |
| Manufacturer | Fieldpiece Instruments |
| UPC | 872641003098 |
| Manufacturer Part Number | SC260 |
SC260 Meter, ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath, ATB1 Wrap Tab Type K Thermocouple, Velcro™ Strap, 9 VDC Battery, ANC4 Padded Case
cULus Listed|CE Certified|EN61010-1|EN61010-2-032|EN61010-2-033|EMC EN61326-1
