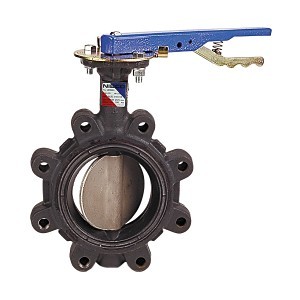

Lug Style Butterfly Valve, Lever Handle, 3 in, Flange, Ductile Iron
PartNIBLD200033
MFGNLG100F
Description
NIBCO® Butterfly Valve, Lug Style, Series: LD-2000-3, 3 in Nominal, 125/150 lb, 225 deg F, Media: Water, Locking Handle Actuator, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem) Stem & Pin Material, EPDM, Domestic
Price/Availability Accessible On Login
- 225 deg F continuous and 250 deg F intermittent service
- Stainless steel stem with copper bushings
- Operating mechanism - Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
- Not recommended for steam service
- Install between Std ASME Class 125/150 flanges 150 psi bi-directional dead end service rating without a downstream flange
- Do not install between AWWA C115/A21.5 type flanges
- EPDM seat liner/seal
| Type | Lug Style |
| Actuator Type | Lever Handle |
| Nominal Size | 3 in |
| End Style | Flange |
| Material | Ductile Iron |
| Body Material | Ductile Iron |
| Dimensions | 3.15 in ID |
| Disc Material | Aluminum Bronze |
| Domestic/Import | Domestic |
| Media | Water |
| Pressure Class | 125/150 lb |
| Pressure Rating | 200 psi |
| Series | LD-2000-3 |
| Softgoods Material | EPDM |
| Stem & Pin Material | 416 Stainless Steel (Stem) |
| Temperature Rating | 225 deg F |
| Trim Material | Stainless Steel Stem/Aluminum Bronze Disc |
| Brand | NIBCO® |
| Package Width | 8.75 in |
| Package Height | 5.125 in |
| UNSPSC | 40141619 |
| Package Length | 12.875 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923717771 |
| Manufacturer Part Number | NLG100F |
5 Years Limited
API-609|MSS SP-25|MSS SP-67|US Coast Guard Category A|Vermont Act 193|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
