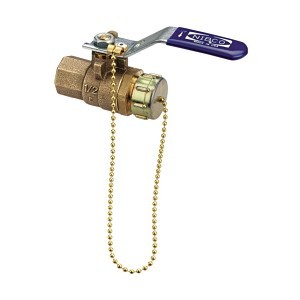

2-Piece Ball Valve, 3/4 in, FNPT x Male Hose Thread, Full Port, Plated Brass Ball, Bronze
PartNIBT58570HC34
MFGNL95808
Description
NIBCO® Ball Valve, 2-Piece Quarter-Turn, Series: T-585-70-HC, 3/4 in Nominal, NPT x Hose, 600 psi, 400 deg F, Full Port, Media: Water, 3/4 in Orifice, Standard Lever Actuator, Chrome Plated Brass Ball, 3.31 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Silicon Bronze Stem Trim, PTFE/Rubber/RPTFE, Domestic
Notice
Price/Availability Accessible On Login- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blowout-proof stem
- Threaded NPT x 3/4 in hose end connections with cap and chain
- Dezincification resistant materials
- PTFE seat ring/packing
- Use in U.S. drinking water applications is prohibited after January 3, 2014
The NIBCO® 2-Piece ball valve is ideal for commercial and light industrial applications that require garden hose connections for drainage purposes. The valve features a hose cap and chain attached to the valve. The valve is equipped with reinforced PTFE seat ring and brass hard chrome plated ball. The NIBCO® full port valve features thread end connections for easy installation. The bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close and bubble-tight shut-off at 600 psi. Please refer to NIBCO® technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® INC. 5-year 125% limited warranty.
| Nominal Size | 3/4 in |
| End Style | FNPT x Male Hose Thread |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Bronze |
| Ball Material | Plated Brass |
| Actuator Type | Standard Lever |
| Body Material | Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 3.31 in |
| Media | Water |
| Orifice Size | 3/4 in |
| Pressure Rating | 600 psi |
| Series | T-585-70-HC |
| Softgoods Material | PTFE/Rubber/RPTFE |
| Temperature Rating | 400 deg F |
| Top to Inlet Center | 2-1/4 in |
| Trim Material | Silicon Bronze Stem |
| Brand | NIBCO® |
| Package Width | 3.5 in |
| Package Height | 4.562 in |
| UNSPSC | 40141607 |
| Package Length | 9.75 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923796394 |
| Manufacturer Part Number | NL95808 |
5 Years Limited
MSS SP-110|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Commercial and Light Industrial Applications that Require Garden Hose Connections for Drainage Purposes
