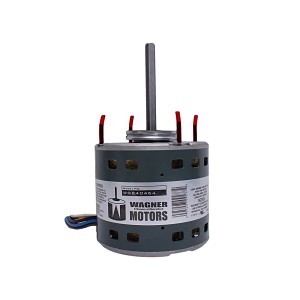

HVAC Motor, 1/2 hp, 1075 rpm, 208-240 VAC, 1 ph
PartDIVWG840464
MFGWG840464
Description
Wagner by Diversitech Direct Drive Furnace Blower Motor, Multi-Horsepower, Condenser Fan Motors, Fan & Blower Motors Application, 1/2, 1/3, 1/4, 1/5, 1/6 hp, 208/230 VAC, 7/6.7/4.4/3.2/2.4 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 4 Speed, DDFB Enclosure, 48 Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, Belly Band/Shaft Up/Down Mounting, 140 deg F, Insulation Class: Class B, 5.59 in Dia x 10.292 in L Dimensions
Price/Availability Accessible On Login
- Extended bolts - extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
- Supportive foam cradle - A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft and mounting bolts during shipment
- Large label - the informative product label contains the motor model number in large, easily identifiable type
- Capacitor size on box - the appropriate size of 370 VAC run capacitor is noted on every motor carton
- Ball bearings - fractional horsepower motors include ball bearings which allow greater heat endurance, improve performance, increase reliability and enhance motor life
- Large wiring diagram - Detailed and large wiring diagrams are on the motor and the motor carton and also in the installation and safety instruction sheet
- Carton handle - the motor carton has been designed with an innovative handle to make the motors much easier to carry
- For customer convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton
- Insulated disconnects - run capacitor connections are insulated for increased safety
- The flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided
- Easy-to-read packaging - the vibrant design of the fractional horsepower motor's packaging makes reading easy and direct
- The distributor can identify the stock of motors on the shelf with ease, the application, voltage and horsepower of the motor are clearly visible
- Extended wires - Wagner motor wires are 30 in long
- The added length makes it easier for the contractor to install the new motor
- Reversing plug - the electrical reversing plug simplifies rotation direction changes
- Grey-green powder coat finish, #18 AWG
The Multi-Horsepower motors are specially designed to cover a range of applications. The condenser fan motors range from 1/2 to 1/5. 1/3 to 1/6 both at 1075 rpm. 1/3 to 1/6 at 825rpm. The direct drive furnace blower motors range from 1/2 to 1/6 in both 115 and 230 volts and 3/4 to 1/5 in both 115 and 230 volts all at 1075rpm. These motors feature reversing plugs, extended thru bolts 36 in leads and are designed for 370 volt capacitors. Installs with all 48 mounting brackets.
| Power Rating | 1/2 hp |
| Voltage Rating | 208-240 VAC |
| Phase | 1 ph |
| Speed | 1075 rpm |
| Amperage Rating | 7/6.7/4.4/3.2/2.4 A Full Load |
| Application Type | Condenser Fan Motors, Fan & Blower Motors |
| Bearing Type | Ball |
| Dimensions | 5.59 in Dia x 10.292 in L |
| Enclosure Type | DDFB |
| Frame | 48 |
| Frequency Rating | 60 Hz |
| Horsepower | 1/2, 1/3, 1/4, 1/5, 1/6 hp |
| Insulation Class | Class B |
| Mounting Type | Belly Band/Shaft Up/Down |
| Number of Speeds | 4 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Size | 1/2 in Dia x 5 in L |
| Temperature Rating | 140 deg F |
| Type | Multi-Horsepower |
| Brand | Wagner by Diversitech |
| Package Width | 6.75 in |
| Package Height | 7.13 in |
| UNSPSC | 26101100 |
| Package Length | 12.75 in |
| Country of Origin | CN |
| Manufacturer | DiversiTech |
| Manufacturer Part Number | WG840464 |
2 Years
