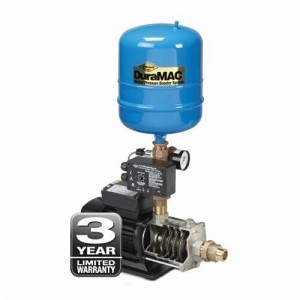

DuraMAC™ Booster Package, 1 in Inlet, 1 in Outlet, 3/4 hp, 52 psi Maximum Suction Lift, 120 VAC
PartAYM17052R020PC1
MFG6010-007
Description
A.Y. McDonald DuraMAC™ Booster Pump, Series: 17 Series, 20 gpm, 3/4 hp, 120 VAC, 7 A, 60 Hz, 1 ph, 52 psi Maximum, 15.97 in L x 25 in H
Price/Availability Accessible On Login
Replacement Item
Looking for an alternate option? Check out the replacement item using the link belowDocumentation
- Water pressure boosting system for irrigation or light commercial use
- Easy setup installation
- Digital control for three modes of operation
- Durable stainless steel and no-lead brass connections
- Two gal pressure tank included
- TEFC single phase motor for quiet operation
- Electronics separated and sealed from waterway
- Pressure gauge included
- No-lead brass check valve included
- Dry-run protection
- For systems with fluctuating pressure, a pressure reducing valve is recommended to assure system pressure stays below 80 psi
| Power Rating | 3/4 hp |
| Voltage Rating | 120 VAC |
| Maximum Suction Lift | 52 psi |
| Inlet Size | 1 in |
| Outlet Size | 1 in |
| Series | DuraMAC™ |
| Amperage Rating | 7 A |
| Dimensions | 15.97 in L x 25 in H |
| Frequency Rating | 60 Hz |
| Maximum Pressure | 52 psi |
| Brand | A.Y. McDonald |
| Manufacturer Part Number | 6010-007 |
| Country of Origin | US |
| Manufacturer | A.Y. McDonald |
| UNSPSC | 40151566 |
| UPC | 053565560816 |
| Alternate Part Number 1 | 17052R020PC1 |
3 Years Limited
PROP65: This product can expose you to chemicals including lead, which is known to the State of CALIFORNIA to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
