Flow-Mate Automatic Sump Pump, 1/2 hp, 120 VAC, 1 ph
PartZOEN98
MFG98
Description
Zoeller® Submersible Pump, Single Seal, Series: Flow-Mate 98, 72 gpm, 1-1/2 in NPT Outlet, 23 ft Maximum Head, 1/2 hp, 115 VAC, 9.4 A, 60 Hz, 1 ph, 1725 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Cast Iron, 10-1/8 in W x 12 in H
Price/Availability Accessible On Login
- Corrosion-resistant, powder coated epoxy finish
- Cast iron switch case, motor, pump housing and base
- No steel sheet metal parts to rust or corrode
- All castings are cast iron class 25-30 25000 lb tensile strength
- Stainless steel screws, guard, handle, arm and seal assembly

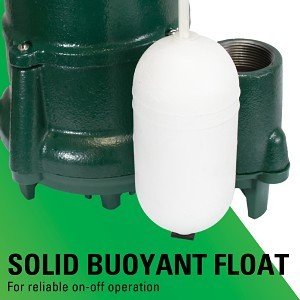

- Float-operated 2-pole mechanical switch
- Permanent split capacitor motor, oil filled and hermetically-sealed, automatic reset thermal overload protection
- Upper and lower oil-fed cast iron bearing
- Carbon and ceramic shaft seal
- Entire unit pressure-tested after assembly
- Watertight neoprene square ring between motor and pump housing
- Passes 1/2 in spherical solids
- No screens to clog
- 1-1/2 in NPT discharge (1-1/2 x 2 in PVC adapter included with BN and BE Models)
- Packaged systems available
- For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump
- 9-1/2 in on point, 3 in off point
| Type | Automatic |
| Series | Flow-Mate 98 |
| Power Rating | 1/2 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Amperage Rating | 9.4 A |
| Dimensions | 10-1/8 in W x 12 in H |
| Flow Rate | 72 gpm |
| Frequency Rating | 60 Hz |
| Horsepower | 1/2 hp |
| Impeller Type | Non-Clogging Vortex |
| Material | Cast Iron |
| Maximum Head | 23 ft |
| Motor Speed | 1725 rpm |
| Outlet Size | 1-1/2 in |
| Temperature Rating | 130 deg F |
| Brand | Zoeller® |
| UNSPSC | 40151513 |
| Alternate Part Number 1 | 98 |
| Manufacturer | Zoeller Company |
| UPC | 053514029470 |
| Manufacturer Part Number | 98 |
CSA Certified|SSPMA Standard|UL Listed
