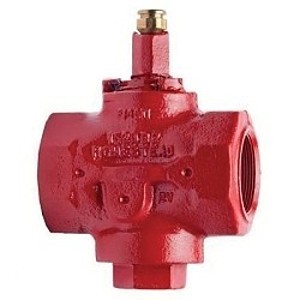

Plug Valve, 2 in, FNPT, Cast Iron
PartHOM6112
MFG0611009020
Description
Homestead® Lubricated Plug Valve, Series: 611, 2 in Nominal, FNPT, 200 psi CWP, 200 lb WOG/150 lb SWP, -20 to 150 deg F, Standard Port, Wrench Actuator, 6 in Inlet to Outlet Length, 4 in Top to Inlet Center, Cast Iron Body, Steel Trim, FKM O-Ring
Price/Availability Accessible On Login
- Standard material is high tensile ASTM A126 Class B cast iron, ASTM A536 65-45-12 ductile iron is also available for high temperature applications
- Flange thickness, diameter and drilling fully conform to ANSI B16.1 Class 125
- Plug valves are usually lower in cost and lighter in weight than comparable gate or globe valves
- Only a small initial injection of sealant, with minimal follow-up sealing, is required for positive shut-off
- Minimal quick and easy follow-up sealing assures long lasting service
- Single solid-piece plug design features true bi-directional seating and low vibration operation
- Various port configurations make them suitable for a wide range of applications
- A thin film of sealant not only forms an incompressible seal to prevent gas or liquid leakage, but also reduces friction between the body and plug, offering low torque operation
- Metal to metal seating assures long life, with no rubber to wear
- Every valve is 100% leak-tested before shipment to ensure reliable shut-off
- 9-1/2 in L wrench
| Nominal Size | 2 in |
| End Style | FNPT |
| Material | Cast Iron |
| Actuator Type | Wrench |
| Body Material | Cast Iron |
| Inlet to Outlet Length | 6 in |
| Port Type | Standard |
| Pressure Class | 200 lb |
| Pressure Rating | 200 psi |
| Softgoods Material | FKM O-Ring |
| Temperature Rating | -20 to 150 deg F |
| Top to Inlet Center | 4 in |
| Trim Material | Steel |
| Brand | Homestead® |
| Manufacturer Part Number | 0611009020 |
| Manufacturer | Olson Technology |
| UNSPSC | 40141624 |
ASTM A126 Class B Body|ANSI B16.1 Class 125|CSA Certified|UL Listed
