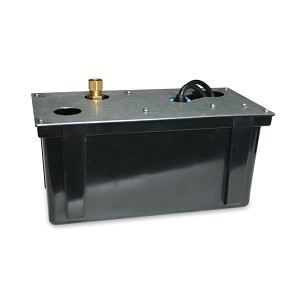

Shallow-Pan Tank Condensate Removal Pump, 1/12 hp, 310 gph, 26 ft Shutoff Head
PartLIG3ABS
MFG551320
Description
Little Giant® Condensate Removal Pump, Shallow-Pan Tank, 310 gph, 1-1/8 in Inlet, 1/2 in MNPT Outlet, 26 ft Shutoff Head, 210 W Power, 115 V 60 Hz 3.5 A Electrical Rating, 11.2 psi Maximum, Nylon Impeller, 1 gal Reservoir, 9 ft Power Cord, 120 deg F, Cast Aluminum, Epoxy Powder Coated, 12.03 in L x 6 in W x 6.5 in H Dimensions, Import
Price/Availability Accessible On Login
- Epoxy-coated cast aluminum housing and motor cover
- Galvanized steel tank cover
- Nylon volute
- Stainless steel shaft
- Thermal overload protection
- 1/2 in MNPT discharge with brass check valve for 1/2 in OD, rigid plastic or copper
- Fluor elastomer (FKM) shaft seal
- Advanced mechanical switch
- 310 gph at 1 ft H
| Voltage Rating | 120 VAC |
| Shutoff Head | 26 ft |
| Cord Type | 9 ft Power |
| Dimensions | 12.03 in L x 6 in W x 6.5 in H |
| Domestic/Import | Import |
| Electrical Ratings | 115 V 60 Hz 3.5 A |
| Finish | Epoxy Coated |
| Flow Rate | 310 gph |
| Impeller Type | Nylon |
| Inlet Size | 1-1/8 in |
| Material | Cast Aluminum |
| Maximum Pressure | 11.2 psi |
| Outlet Size | 1/2 in |
| Power Rating | 1/12 hp |
| Reservoir Capacity | 1 gal |
| Temperature Rating | 120 deg F |
| Type | Shallow-Pan Tank |
| Brand | LittleGIANT® |
| Package Width | 6 in |
| Package Height | 6.5 in |
| UNSPSC | 40101800 |
| Alternate Part Number 1 | 3-ABS |
| Package Length | 12 in |
| Country of Origin | MX |
| Manufacturer | Franklin Electric |
| UPC | 010121120013 |
| Manufacturer Part Number | 551320 |
ABS Tank, 9 ft Power Cord With 115 V Molded Plug, Removable Inlet Filter Screen and 1/12 hp Cast Aluminum Oil-Filled Motor
1 Year
cCSAus Certified
For condensate removal
Price/Availability Accessible On Login
LittleGIANT®Shallow-Pan Tank Condensate Removal Pump, 1/12 hp, 310 gph, 26 ft Shutoff Head
