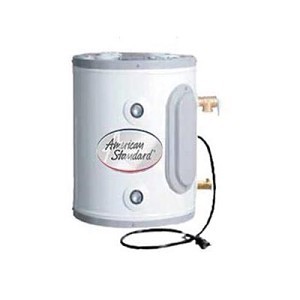

CE Point-of-Use Electric Water Heater, 6 gal, 1.5 kW, 120 VAC
PartASWN6E120
MFG50315040920
Description
American Standard® Electric Water Heater, Point-of-Use, Series: CE Series, 6 gal Tank, 120 VAC, 16.7 A, 2000 W, 1 ph, 3/4 in Water Connection, Immersion Heating Element, 10 AWG Wire, 9 gph at 90 deg F Rise Recovery, 150 psi, ASME Yes/No: No, Glass Lined Steel, 13-7/8 in Dia x 15-1/2 in H
Price/Availability Accessible On Login
- Heavy gauge steel tank
- Inner tank glass-lined with Dura-Glas™ and fired at 1600 deg F for optimum protection from the effects of corrosion
- non-cfc energy saving foam insulation - reduces energy cost by maximizing heat retention
- Anode rod - to ensure longer tank life
- Immersion heating element - applies heat directly to water
- Fully adjustable thermostat control - for variable temperature control to 160 deg F
- Factory installed energy cut-off system
- Top and side water connections - on 6 to 20 Gallon Models affording choice of cold-in and hot-out connections
- Factory installed temperature/pressure relief valve
- Brass drain valve (full port ball) - designed to allow easy draining and avoid clogging
- American Standard® point-of-use electric water heraters - are certified at 300 psi test pressure and 150 psi working pressure and all tanks are 100% hydrostatically tested at the factory
American Standard® Point-Of-Use Electric Models - are the ideal solution for hot water requirements in locations where in it is not practical to run long hot water pipes. These models can be installed in spaces under counters, mop sinks, cabinets or in other confined areas.
| Tank Capacity Range | 1.5 to 6 gal |
| Power Rating | 1.5 kW |
| Voltage Rating | 120 VAC |
| Warranty Years | 6 |
| Type | Point-of-Use |
| Series | CE |
| Tank Capacity | 6 gal |
| Amperage Rating | 16.7 A |
| ASME Yes/No | No |
| Dimensions | 13-7/8 in Dia x 15-1/2 in H |
| Heating Element | Immersion |
| Material | Glass Lined Steel |
| Phase | 1 ph |
| Pressure Rating | 150 psi |
| Recovery Rate | 9 gph at 90 deg F Rise |
| Water Connection | 3/4 in |
| Wire Size | 10 AWG |
| Brand | American Standard® |
| Package Width | 16.535 in |
| Package Height | 19.488 in |
| UNSPSC | 40101825 |
| Alternate Part Number 1 | CE-06-AS |
| Package Length | 17.125 in |
| Manufacturer | American Standard Water Heaters |
| UPC | 856546006729 |
| Manufacturer Part Number | 50315040920 |
6 Years Limited on Tank and Parts
Meet or Exceed ASHRAE 90.1B - 2001 Standard and are Listed with The California Energy Commission|UL Listed
Residential
