Clearance

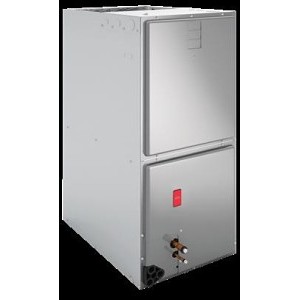

Residential Heat Pump, 2 ton, 27 Kbtu/hr Heating, 208-240 VAC, 1 ph
PartFJSAMUG24LMAS
MFGAMUG24LMAS
Description
Airstage, AMUG24LMAS, Air Handler, Multi-Position, Series: AMUG, 24000 Btu/hr Nominal, 24000 Btu/hr Cooling, 27000 Btu/hr Heating, 590, 670, 800 cfm Flow Rate, 208 to 230 V AC, 1 ph, 60 Hz Power Source, R-410A Refrigerant, 42-1/2 in H x 21 in W x 21-11/16 in D Dimensions, Import
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
- All-aluminum indoor unit coil
- High static pressure, up to 1.0 inWG
- Indoor sound levels as low as 24 dBA
- Adaptive fan motor control - Optimum indoor comfort
- Minimum clearance on three sides only 21in. clearance on the front for service.
- Downflow and Horizontal Right kits provided with each AHU at no additional cost
- Factory provided and field installed electric heat kit - Up to 7kW
- External Input/Output Interface - Interlock with 3rd party systems. (Optional)
Fujitsu is thrilled to present yet another product innovation designed to complement a progressive market. Leveraging our cutting edge inverter technology, Fujitsu’s new system combines our revolutionary side discharge outdoor units with a modular design indoor unit. The result: high efficiency, space saving, and quiet single-zone systems with no compromise.
| Nominal Capacity | 2 ton |
| Heating Capacity | 27 Kbtu/hr |
| Voltage Rating | 208-240 VAC |
| Phase | 1 ph |
| Cooling Capacity | 24000 Btu/hr |
| Dimensions | 42-1/2 in H x 21 in W x 21-11/16 in D |
| Domestic/Import | Import |
| Flow Rate | 590, 670, 800 cfm |
| Power Source | 208 to 230 V AC, 1 ph, 60 Hz |
| Refrigerant Type | R-410A |
| Series | AMUG |
| Type | Multi-Position |
| Brand | Airstage |
| Package Width | 25.31 in |
| Package Height | 42.31 in |
| Package Length | 24 in |
| Country of Origin | MX |
| Manufacturer | Fujitsu General |
| Manufacturer Part Number | AMUG24LMAS |
Handheld remote control
7 Years Compressor/5 Years Parts
AHRI Certified|ISO9001|ISO14001|cETLus Listed|ASTM B117|RoHS Compliant|Energy Star Compliant|California 2022 Title 24 requirements
For Residential and Light Commercial Applications
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
AirstageResidential Heat Pump, 2 ton, 27 Kbtu/hr Heating, 208-240 VAC, 1 ph
