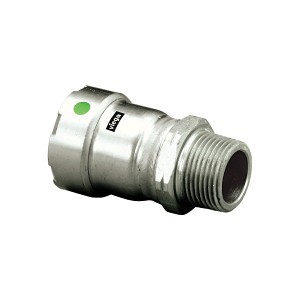

Male Adapter, 1-1/4 in, Press x MNPT, 316/316L Stainless Steel
PartMPS6MA114
MFG90880
Description
MegaPress® Adapter, Series: 5111, Fitting/Connector Type: Adapter, 1-1/4 in Nominal, Press x MNPT, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.7 in L, Import
Price/Availability Accessible On Login
- Patented Viega Smart Connect® makes secure connection in less than 7 sec
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
- No welding, grinding or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
- Wide range of fitting configurations
- Eliminate threading and welding
- No fire watches, hot work permits or gas freezing
- Makes secure press connections from 1/2 to 2 in less than seven seconds
- Compatible with existing press tools
- 316 stainless carries an NSF-16 potable water rating
- Model 5111
| Fitting/Connector Type | Adapter |
| Nominal Size | 1-1/4 in |
| Type | Male |
| End Style | Press x MNPT |
| Material | 316/316L Stainless Steel |
| Domestic/Import | Import |
| Dimensions | 3.7 in L |
| Pressure Rating | 200 psi |
| Series | 5111 |
| Temperature Rating | 0 to 250 deg F |
| Brand | MegaPress® |
| Package Width | 2.21 in |
| Package Height | 2.21 in |
| UNSPSC | 40171707 |
| Alternate Part Number 1 | 403503 |
| Package Length | 3.72 in |
| Country of Origin | DE |
| Manufacturer | Viega |
| UPC | 691514908809 |
| Manufacturer Part Number | 90880 |
EPDM Sealing Element
Limited
ABS Approved|ANSI/CAN/UL 213|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|FM Class 1920|IAPMO CPC/NSPB/UMC/UPC/PS-117|ICC IMC/IPC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved|NSF/ANSI 61/372|PROP65: This product can expose you to chemicals including Chromium (hexavalent compounds), which is know to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
