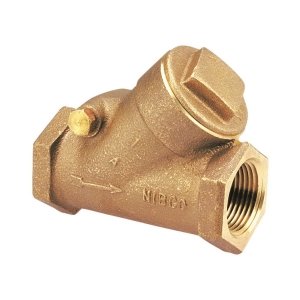

Swing Check Valve, 3/4 in, FNPT, Bronze
PartNIBT473Y34
MFGNL92008
Description
NIBCO® Swing Check Valve, Y-Pattern, Series: T-473-Y, 3/4 in Nominal, NPT, 600 psi, 300 lb, Low Lead Compliance: No, Bronze Body, Bronze Trim, PTFE, Domestic
Notice
Price/Availability Accessible On Login- Regrindable seat
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Renewable PTFE seat disc
- 300 psi/20.7 bar saturated steam to 421 deg F
The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. It features a screw in bonnet for accessibility to repair or replace parts. The check valve is recommended for commercial and industrial steam service. The NIBCO® bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5-year 125% limited warranty.
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Material | Bronze |
| Domestic/Import | Import |
| Body Material | Bronze |
| Low Lead Compliance | No |
| Pressure Class | 300 lb |
| Pressure Rating | 600 psi |
| Series | T-473-Y |
| Softgoods Material | PTFE Seat, Disc |
| Trim Material | Bronze |
| Type | Y-Pattern |
| Brand | NIBCO® |
| Package Width | 3.5 in |
| Package Height | 4.562 in |
| UNSPSC | 40141634 |
| Package Length | 9.75 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923637871 |
| Manufacturer Part Number | NL92008 |
5 years Limited
ASTM B61 Body|MSS SP-80|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Commercial, Mechanical and Industrial Applications
