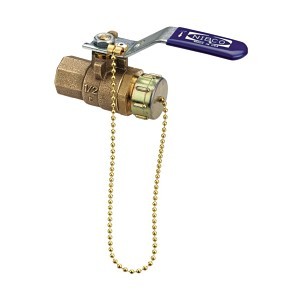

2-Piece Ball Valve, 3/4 in, FNPT x Male Hose Thread, Full Port, Plated Brass Ball, Bronze
PartNIBT58570HC34
MFGNL95808
Description
NIBCO® Ball Valve, 2-Piece Quarter-Turn, Series: T-585-70-HC, 3/4 in Nominal, NPT x Hose, 600 psi, 400 deg F, Full Port, Media: Water, 3/4 in Orifice, Standard Lever Actuator, Chrome Plated Brass Ball, 3.31 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Silicon Bronze Stem Trim, PTFE/Rubber/RPTFE, Domestic
Price/Availability Accessible On Login
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blowout-proof stem
- Threaded NPT x 3/4 in hose end connections with cap and chain
- Dezincification resistant materials
- PTFE seat ring/packing
- Use in U.S. drinking water applications is prohibited after January 3, 2014
| Nominal Size | 3/4 in |
| End Style | FNPT x Male Hose Thread |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Bronze |
| Ball Material | Plated Brass |
| Actuator Type | Standard Lever |
| Body Material | Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 3.31 in |
| Media | Water |
| Orifice Size | 3/4 in |
| Pressure Rating | 600 psi |
| Series | T-585-70-HC |
| Softgoods Material | PTFE/Rubber/RPTFE |
| Temperature Rating | 400 deg F |
| Top to Inlet Center | 2-1/4 in |
| Trim Material | Silicon Bronze Stem |
| Brand | NIBCO® |
| Package Width | 3.5 in |
| Package Height | 4.562 in |
| UNSPSC | 40141607 |
| Package Length | 9.75 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923796394 |
| Manufacturer Part Number | NL95808 |
5 Years Limited
MSS SP-110|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
