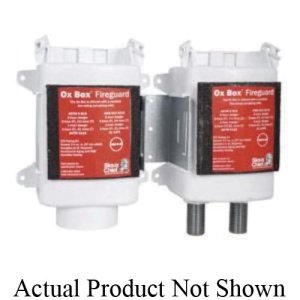

OxBox™ Fire Rated Washing Machine Outlet Box With Arrester, 1/2 in Inlet x 3/4 in, F1960 PEX Grip Inlet x Male Hose Thread Outlet, ABS
PartSIO696RG2313WF
MFG696RG2313WF
Description
Sioux Chief OxBox™ Fire Rated Washing Machine Outlet Box, Series: 696R, 1/2 in Inlet, 3/4 in Outlet, PEX F1960 Inlet, Male Hose Thread Outlet, 250 psi, 250 deg F, ABS, 7-1/4 in H x 11-1/2 in W, Domestic
Price/Availability Accessible On Login
- Patent no 7,360,553 & no 7,735,511
- Boxes mount securely to stub or over studs
- Separate supply and drainage system into two stub bays
- Drain knockout is easy to remove with plier
- Supply lines can be mounted from above or below
- High quality quarter-turn ball valve
- No lead valve
- MiniRester™ water hammer arrester
- Fire rated ABS frame, fire rated ABS frame extension, galvanized steel bracket, galvanized steel box clip, dow corning, 111 FDA approved silicone compound piston lubrication, chrome plated forged brass valve body
Sioux Chief 696R series OxBox fire-rated double hose bibb outlet connection outlet boxes shall be used where necessary in plumbing supply/drainage systems. Unit shall allow for mounting with supply lines from top or bottom while straddling the stud. Unit shall be available with plain valves or valves with water hammer arresters. Arresters shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top tracks of boxes for added support. Metal clip shall be installed on side slots of boxes in desired configuration. Drain box shall have a 5/8 in integral testable nipple on knockout. Outlet connections shall be generally 3/4 in.
| Type | Washing Machine |
| Material | Plastic |
| Dimensions | 7-1/4 in H x 11-1/2 in W |
| Domestic/Import | Domestic |
| Inlet Size | 1/2 in |
| Inlet Type | F1960 PEX Grip |
| Outlet Size | 3/4 in |
| Outlet Type | Male Hose Thread |
| Pressure Rating | 250 psi |
| Series | 696R |
| Temperature Rating | 250 deg F |
| Brand | Sioux Chief |
| UNSPSC | 40141700 |
| Country of Origin | US |
| Manufacturer | Sioux Chief |
| UPC | 739236100627 |
| Manufacturer Part Number | 696RG2313WF |
111 FDA Approved|ASME A112.18.1|ASTM E814/119|CAN/ULC S115|UL 1479
Supply lines can be mounted from above or below
