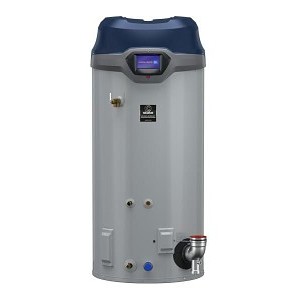

Ultra Force® Power Direct Commercial Gas Water Heater, ASME, 119 gal, Natural Gas, 300 Kbtu/hr, Ultra Low NOx
PartSTASUF119300NEA
MFG100234937
Description
State Industries Gas Water Heater, Series: ULTRA FORCE™, 300000 Btu/hr Heating, Natural Gas, 1-1/2 in Gas Connection, 119 gal Tank, Direct Spark Ignition, Power Vent, 1164 gph at 30 deg F Rise Recovery, 95 % Energy Efficient, 1-1/2 in NPT Water Connection, 160 psi, Tall or Short: Tall, Ultra Low NOx: Yes, ASME Yes/No: Yes, 33-1/8 in Dia x 74-1/2 in H
Price/Availability Accessible On Login
Replacement Item
Looking for an alternate option? Check out the replacement item using the link below- Intelligent control system with LCD display and iCOMM connectivity
- Precise temperature control adjustable from 90 to 180 deg
- Built-in diagnostics
- Run history information
- State Ultra Force™ water heaters are compatible with the iCOMM™ remote monitoring system
- Submerged combustion chamber, with helical heat exchanger coil positioned in center of tank, surrounded by water to virtually eliminates radiant heat loss from chamber
- Spiral heat exchanger keeps hot burner gases swirling, uses centrifugal force to maximize efficiency of heat transfer to water in tank
- Spiral heat exchanger reduces lime scale from forming on water-side surfaces, which maintains energy efficiency over time
- Powered anodes standard on all models provides long lasting tank protection in varying water conditions
- Powered anodes are non-sacrificial
- Automatically adjusts output needed to properly protect the tank
- PermaGlas® Ultra Coat™ glass lining glass coating is applied using a liquid slush coating technique to ensure uniform coating
- Heat exchanger coil is glassed both externally and internally for optimum protection
- Vents vertically or through a sidewall
- Front located exhaust and condensate connections allow for easy install and access
- High efficiency modulating premix powered burner down-fired pre-mix burner provides optimum efficiency and quiet operation
- Top-mounted burner position prevents condensation from affecting burner operation
- Space-saving design for installation flexibility easy-to-remove top cover for convenient access to serviceable parts
- Hand hole cleanout allows easy access to tank interior for cleaning
The full line of State Modulating Ultra Force High Efficiency Power Vent condensing water heaters has been designed to provide years of dependable service and feature industry leading technology. Models are available from 120,000 to 500,000 Btu/h and all deliver thermal efficiencies of 95% and higher. The unique helical coil heat exchanger limits weld joints for optimal service life while maximizing heat transfer. Modulating Ultra Force High Efficiency Power Vent is an industry leader in high efficiency commercial water heating. The current modulating models adjust firing rate to the specific demand further increasing efficiency and money savings.
| Fuel Type | Natural Gas |
| Tank Capacity Range | 110 to 119 gal |
| Ultra Low NOx | Yes |
| Type | Tall |
| Heating Capacity | 300 KBtu/hr |
| Vent Type | Power Direct |
| ASME Yes/No | Yes |
| Series | ULTRA FORCE® |
| Tank Capacity | 119 gal |
| Dimensions | 33-1/8 in Dia x 74-1/2 in H |
| Energy Efficiency | 96 % |
| Gas Connection | 1-1/2 in |
| Ignition Type | Direct Spark |
| Pressure Rating | 160 psi |
| Recovery Rate | 291 gph at 100 deg F Rise |
| Tall or Short | Tall |
| Temperature Rating | 180 deg F |
| Vent Size | 4 or 6 in |
| Water Connection | 1-1/2 in |
| Brand | State Industries |
| Package Width | 40.75 in |
| Package Height | 85.5 in |
| UNSPSC | 40101826 |
| Alternate Part Number 1 | SUF119300NEAE |
| Package Length | 42.25 in |
| Manufacturer | A. O. Smith |
| UPC | 091196009786 |
| Manufacturer Part Number | 100234937 |
3 Years Limited
ASME Specified|AHRI Certified|ASHRAE/IESNA 90.1|CSA Certified|Energy Star® Qualified|UL Listed|Complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with Similar Requirements for ultra-low NOx Emissions
