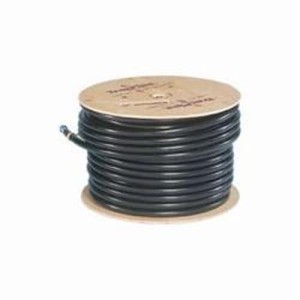

Flexible Gas Pipe, 1/2 in, 300 Stainless Steel, 50 ft
PartTRA1250
MFGFGP-CS-500-50
Description
TracPipe® Counterstrike® Flexible Gas Pipe, 1/2 in Nominal, CounterStrike®, 0.597 in Inside Dia, 0.888 in Outside Dia, 50 ft Reel Length, 0.01 in Wall Thickness, 25 psi Working, -20 to 200 deg F, 300 Stainless Steel, ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84, ICC Code (IFGC, IPC), ICC LC 1024, ICC PMG 1058, IAPMO ES ER-0227, UL 723, Domestic
Price/Availability Accessible On Login
Documentation
- Semi-rigid tubing
- Proprietary polymer jacket - energy dissipating properties
- Black conductive, UV/Ozone resistant polyethylene with flame retardant jacket
- ASTM E-84 compliant not to exceed 25 flame spread and 50 smoke density
- CounterStrike® has been shown to be up to 400 times more resistant to the damaging effects of electrical arcing energy than yellow CSST
- Uses the new AutoSnap® fittings that do not require disassembly/reassembly
- There are no additional bonding requirements for CounterStrike® imposed by the manufacturer's installation instructions
- Lays straighter and pulls easier, dramatically decreasing installation times (and saving you time and money in the process)
- Unlike competitive brands, CounterStrike® is non-annealed making it more crush resistant, and easier to cut
- Superior lightning protection compared to bonded yellow CSST
| Type | Flexible |
| Material | 300 Stainless Steel |
| Nominal Size | 1/2 in |
| Length | 50 ft |
| End Style | CounterStrike® |
| Inside Diameter | 0.597 in |
| Outside Diameter | 0.888 in |
| Temperature Rating | -20 to 200 deg F |
| Wall Thickness | 0.01 in |
| Working Pressure | 25 |
| Brand | TracPipe® Counterstrike® |
| Manufacturer Part Number | FGP-CS-500-50 |
| Country of Origin | US |
| Manufacturer | Omega Flex |
| UNSPSC | 40171500 |
| UPC | 076335152073 |
ANSI LC1/CSA 6.26|ANSI Z223.1|ASTM E84|ICC Codes (IFGC/IMC/IPC/IRC)|ICC LC 1024|ICC PMG 1058|IAPMO ES ER-0227|UL 723
