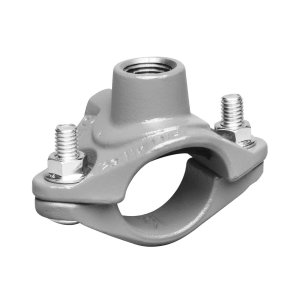

Mechanical Tee, 1-1/4 x 1 in, Groove x FNPT, Ductile Iron, Galvanized
PartVFFGLWMT1141
MFGCB05922ZE0
Description
Victaulic® FireLock™ Outlet-Tee, Series: 922, 1 in Nominal, Thread, 300 psi, -40 deg F, 3/8 x 1-3/8 in Bolt, Carbon Steel Bolt, Ductile Iron Clamp, Grade E EPDM Gasket, 3.87 in W x 2.56 in D, Orange Enamel
Price/Availability Accessible On Login
- Provides a direct branch connection at any location a hole can be cut in a pipe
- 1-3/16 to 1-1/4 in OD sleeve
- With heat-treated plated carbon steel bolt/nut: Trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
- Grade E EPDM violet gasket
| Fitting/Connector Type | Tee |
| Type | Mechanical |
| Nominal Size | 1-1/4 x 1 in |
| End Style | Groove x FNPT |
| Material | Ductile Iron |
| Finish | Galvanized |
| Bolt Material | Carbon Steel |
| Bolt Size | 3/8 x 1-3/8 in |
| Clamp Material | Ductile Iron |
| Connection Type | Thread |
| Dimensions | 3.87 in W x 2.56 in D |
| Gasket Material | Grade E EPDM |
| Pressure Rating | 300 psi |
| Series | 922 |
| Temperature Rating | -40 deg F |
| Brand | Victaulic® |
| Manufacturer | Victaulic |
| UPC | 688304717345 |
| Manufacturer Part Number | CB05922ZE0 |
ASTM A536 Grade 65-45-12 Ductile Iron|ASTM A449 Bolts/Nuts|cULus Listed|CtP Standard|FM Approved|LPCB Approved|VdS Approved
Provides a convenient method of incorporating outlets for directly connecting sprinklers, drop nipples, sprigs, gauges, drains and other outlet products
