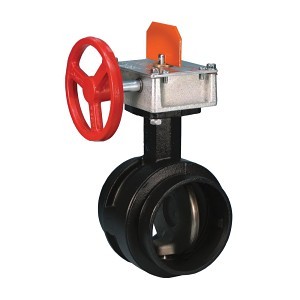

FireLock® Butterfly Valve, 3 in, Groove, Ductile Iron
PartVFVBFV3
MFGV030705100
Description
Victaulic® FireLock® Butterfly Valve, Fire Protection Supervised Open, Series: 705, 3 in Nominal, Grooved End Style, 300 psi Maximum, Specifications Met: ASTM A536, ASTM B733, ASTM A582, C/US UL Listed, VDS Compliant, FM and LPCB Approved, Media: Water, Handwheel Actuator, 3.77 in Inlet to Outlet Length, 7.79 in Top to Inlet Center, Ductile Iron Body, 416 Stainless Steel Trim, EPDM Seat/Carbon Steel Retaining Ring Softgoods, Alkyd Enamel, Black, 3-1/2 in OD Dimensions
Price/Availability Accessible On Login
- Features a weatherproof actuator housing
- Stainless steel bearings with TFE lining
- Brass or bronze traveling nut on a steel lead screw, in a ductile iron housing
| Type | Grooved |
| Nominal Size | 3 in |
| End Style | Groove |
| Material | Ductile Iron |
| Series | FireLock® |
| Actuator Type | Gear Operator |
| Body Material | Ductile Iron |
| Color | Black |
| Dimensions | 3-1/2 in OD |
| Finish | Alkyd Enamel Coated |
| Inlet to Outlet Length | 3.77 in |
| Maximum Pressure | 300 psi |
| Media | Water |
| Softgoods Material | EPDM Seat/Carbon Steel Retaining Ring |
| Specifications Met | ASTM A536, ASTM B733, ASTM A582, C/US UL Listed, VDS Compliant, FM and LPCB Approved |
| Top to Inlet Center | 7.79 in |
| Trim Material | 416 Stainless Steel |
| Brand | Victaulic® |
| Manufacturer Part Number | V030705100 |
| Manufacturer | Victaulic |
| UNSPSC | 40141600 |
| UPC | 688304535895 |
cULus Listed|Ductile Iron Conforming to ASTM A536 Grade 65-45-12|FM Approved|LPCB Approved|416 Stainless Steel Conforming to ASTM A-582 Stem|VdS Approved
