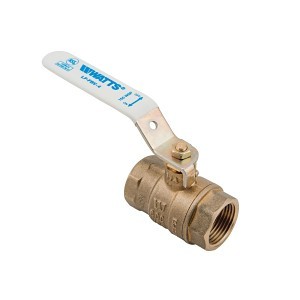

2-Piece Ball Valve, 1-1/2 in, FNPT, Full Port, Brass Ball, Brass
PartWTTLFFBV4112
MFG0555124
Description
WATTS® Ball Valve, 2-Piece, Series: LFFBV-4, 1-1/2 in Nominal, FNPT End Style, 600 psi WOG Pressure, -40 to 400 deg F, Full Port, 1-7/16 in Orifice, Brass Ball, 3-7/16 in Inlet to Outlet Length, 3 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods, Polished Chrome, Import
Price/Availability Accessible On Login
- Lead free construction
- Full port
- Threaded end connections
- Metal-to-metal adapter body seal to eliminate adapter leaks after soldering
- Fluorocarbon elastomer stem O-Ring prevents stem leaks
- Adjustable stem packing gland provides longer service life
- Bottom loaded, blow-out proof stem
- 150 psi steam working pressure
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Chrome plated brass ball
| Nominal Size | 1-1/2 in |
| End Style | FNPT |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Brass |
| Ball Material | Brass |
| Body Material | Brass |
| Domestic/Import | Import |
| Finish | Polished Chrome |
| Inlet to Outlet Length | 3-7/16 in |
| Orifice Size | 1-7/16 in |
| Pressure Rating | 600 psi WOG |
| Series | LFFBV-4 |
| Softgoods Material | PTFE |
| Temperature Rating | -40 to 400 deg F |
| Top to Inlet Center | 3 in |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | WATTS® |
| Package Width | 4.28 in |
| Package Height | 2.6 in |
| UNSPSC | 40141607 |
| Alternate Part Number 1 | LFFBV-4 |
| Package Length | 7.04 in |
| Country of Origin | CN |
| Manufacturer | Watts Water Technologies |
| UPC | 098268805505 |
| Manufacturer Part Number | 0555124 |
1 Year
cCSAus Certified|NSF/ANSI 61-G
