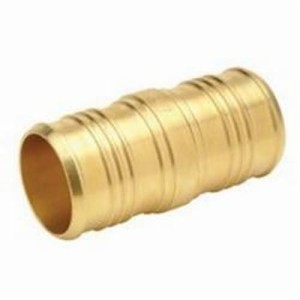

Reducer Coupling, 1-1/2 x 1-1/4 in, Crimp PEX, Brass
PartZRPR112114
MFGQQC76GX
Description
Zurn® ZURN PEX® XL Reducing Coupling, Reducing Coupling Fitting/Connector, 1-1/2 x 1-1/4 in Nominal, Barb End Style, 2.55 in Length, 160 psi Pressure, Brass, 200 deg F, 1.3 in OD Dimensions
Price/Availability Accessible On Login
- ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
Zurn PEX® XL-Low Lead Brass Barb Coupling. The QQC_GX is used to connect two separate pieces of PEX tubing. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 PSI at 73 deg F, 100 PSI at 180 deg F, and 80 PSI at 200 deg F. These fittings are listed by NSF as complying with the following standards NSF/ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5, and ASTM F1807.
| Fitting/Connector Type | Reducer Coupling |
| Nominal Size | 1-1/2 x 1-1/4 in |
| Material | Brass |
| End Style | Crimp PEX |
| Dimensions | 1.3 in OD |
| Length | 2.55 in |
| Pressure Rating | 160 psi |
| Temperature Rating | 200 deg F |
| Brand | Zurn® |
| UNSPSC | 40183107 |
| Manufacturer | Zurn Water |
| UPC | 084169014849 |
| Manufacturer Part Number | QQC76GX |
Limited
ASTM F877/F1807|CSA B137.5|Low Lead Compliant|ANSI/NSF 14|ANSI/NSF 61 Annex G
