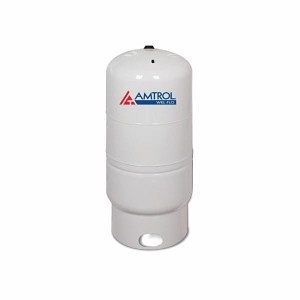

Wel-Flo® Hydropneumatic Tank, 119 gal, 26 in Dia, 125 psi, Gray
PartAMTWF360
MFGWF360
Description
Amtrol® Wel-Flo® Diaphragm Well Tank, Series: WF Series, FNPT Discharge Connection Type, 1-1/4 in Discharge, 26 in Overall Dia, 62 in Height, 119 gal, 0.39 Max Acceptance Factor, Polypropylene Liner, 125 psig, 38 psig Precharge, Deep Drawn Steel, Light Gray, Domestic
Price/Availability Accessible On Login
- Strongest tank design featuring deep drawn steel and multi-dome construction
- Welded steel base is stronger than plastic
- Heavy duty butyl diaphragm
- Patented Turbulator™ water circulation device
- Polypropylene liner meets NSF® international standard 61
- Welded air stem to help eliminate leaks
- Stainless steel system connection
- Controls pump cycling in residential well water systems
Champion®, Wel-Flo® and Pro-Line® fixed diaphragm well tanks are the high quality alternative to other designs. They deliver reliable performance at an affordable price. All feature 125 PSIG working pressure, a stainless steel connector, patented Turbulator™ and a 5-year limited warranty. These brands represent an outstanding value compared to competitive well tanks.
| Capacity | 119 gal |
| Diameter | 26 in |
| ASME Yes/No | No |
| Pressure Rating | 125 psi |
| Series | Wel-Flo® |
| Color | Gray |
| Discharge Connection Type | FNPT |
| Discharge Outlet Size | 1-1/4 |
| Discharge Size | 1-1/4 in |
| Domestic/Import | Domestic |
| Height | 62 in |
| Liner Material | Polypropylene |
| Material | Deep Drawn Steel |
| Max Acceptance Factor | 0.39 |
| Overall Diameter | 26 in |
| Precharge Rating | 38 psi |
| Brand | Amtrol® |
| UNSPSC | 24111807 |
| Alternate Part Number 1 | WF-119 |
| Country of Origin | US |
| Manufacturer | Amtrol |
| UPC | 642031406705 |
| Manufacturer Part Number | WF360 |
IAPMO R and T Low-Lead|NSF/ANSI 61|NSF Approved|National Ground Water Association|Water Systems Council
Residential
Price/Availability Accessible On Login
Amtrol®Wel-Flo® Hydropneumatic Tank, 119 gal, 26 in Dia, 125 psi, Gray
