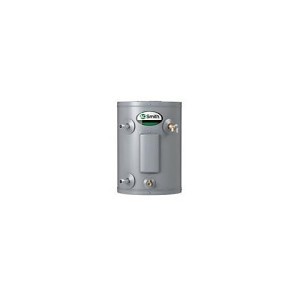

ProMax® Side Connect Electric Water Heater, 19 gal, 2.5 kW, 120 VAC
PartAOS20E120
MFG100118477
Description
AO Smith® ProMax® Electric Water Heater, Compact, Series: EJCS-20, 19 gal Tank, 120 V AC, 2500 W, 1 ph, 3/4 in NPT Water Connection, (1) Copper Heating Element, 11 gph at 90 deg F Rise Recovery, 150 psi, ASME Yes/No: No, 18 in W x 24-3/4 in H
Price/Availability Accessible On Login
- Compact - Side-mounted plumbing and electrical connections (optional top-mounted Water connections for field conversion), designed for installation under a counter, in a crawl space or in other tight spaces
- Blue Diamond® glass coating - Provides superior corrosion resistance compared to industry standard glass lining
- Enhanced-flow brass drain valve - Our standard residential water heaters have a solid brass, tamper-resistant, enhanced-flow, ball type, drain valve
- Uses a standard female hose fitting that allows for fast and easy draining during maintenance
- Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off
- Approved for manufactured housing - All residential electric water heaters are compliant with HUD standards for mobile homes/manufactured housing
- Aluminum anode rod for maximum corrosion protection
The ProLine® compact electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces. With a 19 gal tank and 1 element delivering 2500 W, the EJCS-20 is designed to fit into tight spaces. The Coregard™ Anode helps protect the tank from the corrosive effects of water and is accompanied by a 6-years limited warranty.
| Tank Capacity Range | 19 to 20 gal |
| Power Rating | 2.5 kW |
| Voltage Rating | 120 VAC |
| Warranty Years | 6 |
| Type | Side Connect |
| Blanket (Yes/No) | No |
| Series | ProMax® |
| Tank Capacity | 19 gal |
| ASME Yes/No | No |
| Dimensions | 18 in W x 24-3/4 in H |
| Heating Element | (1) Copper |
| Phase | 1 ph |
| Pressure Rating | 150 psi |
| Recovery Rate | 11 gph at 90 deg F Rise |
| Water Connection | 3/4 in NPT |
| Brand | AO Smith® |
| Package Width | 19.5 in |
| Package Height | 26.25 in |
| UNSPSC | 40101825 |
| Alternate Part Number 1 | EJCS20261291000 |
| Package Length | 22.25 in |
| Country of Origin | MX |
| Manufacturer | A. O. Smith |
| UPC | 671657013660 |
| Manufacturer Part Number | 100118477 |
6 Years Limited Tank and Component Parts
ASHRAE/IESNA 90.1|CSA Certified|UL 174
Residential
