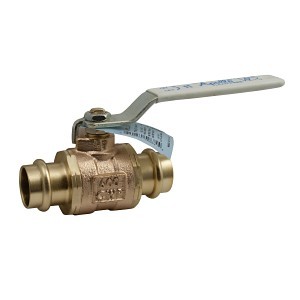

2-Piece Ball Valve, 1 in, Press, Full Port, Stainless Steel Ball, Bronze
PartAPO77WLF14501
MFG77WLF-145-01
Description
Apollo™, 77WLF-145-01, Ball Valve, 2-Piece, Series: 77WLF-140, 1 in Nominal, Press End Style, 250 psig CWP Pressure, 0 to 250 deg F, Full Port, Media: Water, 1 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 4.24 in Inlet to Outlet Length, 2.2 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem Trim, Multi-Fill PTFE/EPDM Softgoods, Domestic
Price/Availability Accessible On Login
- Corrosion resistant materials
- Complies with Federal Public Law 111-380, ANSI 3rd party approved and listed
- APOLLOXPRESS® connectors are designed for direct mechanical connection to ASTM B88 type K, L, and M copper tubing in the hard drawn condition, press connectors are not suitable for steam or flammable gas service
- Easily identifiable blue Lead free hang tag
- Ridgid® XL press tool compatible
- Lead free - the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- 01 - Standard configuration
- 100% factory tested
- Multi-fill PTFE stem packing and EPDM O-ring
- Leak before Press® technology
- Fast, reliable, economical press installation
- Lead free brass and bronze materials
- Adjustable stem packing
The lead free APOLLOPRESS® 77WLF ball valve is ideal for installation in potable water systems requiring NSF 61 or lead free approval. Now with Leak Before Press® feature and 250 psig maximum working pressure.
| Nominal Size | 1 in |
| End Style | Press |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Bronze |
| Ball Material | Stainless Steel |
| Actuator Type | Lever Operated |
| Body Material | Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 4.24 in |
| Media | Water |
| Orifice Size | 1 in |
| Pressure Rating | 250 psig CWP psi |
| Series | 77WLF-140 |
| Softgoods Material | Multi-Fill PTFE/EPDM |
| Temperature Rating | 0 to 250 deg F |
| Top to Inlet Center | 2.2 in |
| Trim Material | 316 Stainless Steel Stem |
| Brand | Apollo™ |
| Package Width | 6.75 in |
| Package Height | 3 in |
| UNSPSC | 40141607 |
| Package Length | 7.875 in |
| Country of Origin | US |
| Manufacturer | Apollo Conbraco |
| UPC | 670750758287 |
| Manufacturer Part Number | 77WLF-145-01 |
5 Years
ARRA Compliant|ASTM B584-C89836 Body|ANSI 3rd Party Approval to AB1953|MSS SP-110|NSF/ANSI 61G|NSF/ANSI 372 Lead-Free
For Installation in Potable Water Systems
