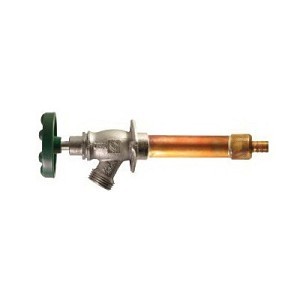

Arrow-Breaker® Wall Hydrant, 1/2 or 3/4 in Inlet, FNPT or MNPT, Rough Bronze
PartARH46512
MFG465-12QTLF
Description
Arrowhead Brass Arrow-Breaker® Anti-Siphon Frost-Free Wall Hydrant, Heavy Duty Quick Turn®, Series: 460, 1/2 x 3/4 in Nominal, MNPT x FNPT End Style, 125 psi Pressure, 12 in Length, 140 deg F, Bronze, 17 in OAL x 2-3/4 in W x 2 in D Dimensions
Price/Availability Accessible On Login
Documentation
- Integrated (built-in) anti-siphon vacuum breaker technology
- Exclusive no-leak O-ring bonnet (no packing nut to tighten)
- 25 to 50% higher flow rate than other hydrant (15 gpm at 50 psi)
- If back-flow occurs, contaminated water evacuates out of weep hole in the stem
- Noise-less operation and eliminates damaging water hammer
- Eliminates the need for and cost of thread-on vacuum breakers that restrict flow
- Made in USA from domestic and foreign components
- Lead free
| Type | Wall Hydrant |
| Inlet Size | 1/2 or 3/4 in |
| Inlet Type | FNPT or MNPT |
| Handle Type | Standard |
| Finish | Rough Bronze |
| Series | Arrow-Breaker® |
| ADA Compliance (Yes/No) | No |
| Dimensions | 17 in OAL x 2-3/4 in W x 2 in D |
| Domestic/Import | Domestic |
| End Style | FNPT x MNPT |
| Length | 12 in |
| Material | Bronze |
| Nominal Size | 1/2 x 3/4 in |
| Pressure Rating | 125 psi |
| Temperature Rating | 140 deg F |
| Brand | Arrowhead Brass |
| UNSPSC | 40141726 |
| Country of Origin | US |
| Manufacturer | Arrowhead Brass |
| UPC | 690043466569 |
| Manufacturer Part Number | 465-12QTLF |
3 Years
ASSE 1019-A/1011|IAPMO/UPC Listed|ANSI/NSF 372
