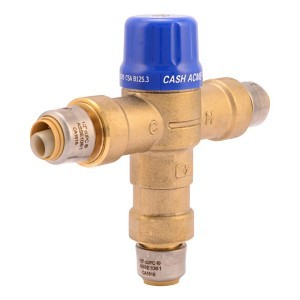

Heatguard® HG110-D Thermostatic Mixing Valve, 1/2 in, Bronze Body

CAA24548 MFG #: 24548
Sharkbite® Heatguard® Thermostatic Mixing Valve, Series: HG110-D, 1/2 in Inlet Connection, 1/2 in Outlet, 230 psi, 85 to 130 deg F, 1 to 20 gpm, Bronze Body, 5.94 in L x 5.36 in H, Domestic
  • Application
  • Brand
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Standards / Approvals
  • Warranty
  • Web
  • Package Volume
  • Package Weight
  • Package Dimensions
  • Country of Origin
  • Compliance
Commercial and Residential
Sharkbite®
VALVE MXG THRMSTC 1/2IN 1/2IN 230PSI BRZ
Domestic and commercial hot water distribution|To control water temperature at the source of heat (hot water tank), point-of-use (sinks, lavatories or bath tubs) or multiple fixtures (multiple sinks or gang shower applications where bather has no access to temperature control)|Certified for distribution and point-of-use applications: Safer hot water from all outlets|Allows the water heater to be set at 140 deg F (60 deg C) or higher, greater effective hot water volume yields less chance of Legionella within the cylinder|Every valve is tested for performance prior to shipping, specify and install with confidence|Robust, low complexity construction, superior reliability, improved user safety|Adjustable and lockable mechanism, minimizes unauthorized tampering with valve setting Factory set, locked to max 120 deg F|120 to 180 deg F hot/39 to 80 deg F cold temperature supply range|Brass internal cap, stainless steel spring|Lead free
Reliance Worldwide Corporation
24548
ASSE 1017, 1069 and 1070, CSA B125.3, IAPMO Listed, NSF/ANSI 372, NSF/ANSI 61
5 Years Limited
Tub & Shower Faucets
50.53 cu-in
1.8 lb
H: 1.61 in x W: 5.28 in x L: 5.95 in
United States of America
Lead Law Compliant
