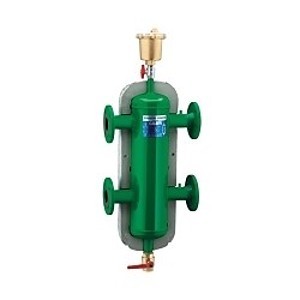

548 Hydraulic Separator, 2 in, Flange, Steel
PartCLF548052A
MFG548052A
Description
Caleffi Hydraulic Separator, Series: 548, 2 in Nominal, Flange, 150 psi Working, 32 to 210 deg F, 60 gpm, 0.5 Maximum Percentage of Glycol, Polyurethane Foam Inner/Embossed Aluminum Outer Insulation, Steel, 13-3/4 in W
Price/Availability Accessible On Login
- 300 Series stainless steel internal baffle
- Epoxy resin painted steel body
- Rigid closed cell expanded polyurethane foam
The Caleffi 548 and NA548 series hydraulic separator creates a zone with a low pressure loss, which enables connected primary and secondary circuits to be hydraulically independent of each other; the flow in one circuit does not create or interrupt flow in another. Hydraulically decoupling primary and secondary circuits eliminates pump conflict. This device includes an automatic high-capacity air vent with service valve to discharge accumulated air within the circuits.
| Type | Hydraulic |
| Series | 548 |
| Nominal Size | 2 in |
| End Style | Flange |
| Material | Steel |
| Connection Type | ANSI 150 lb Raised Face Flange |
| Dimensions | 13-3/4 in W |
| Flow Rate | 60 gpm |
| Insulation Material | Polyurethane Foam Inner/Embossed Aluminum Outer |
| Maximum Percentage of Glycol | 50 % |
| Temperature Rating | 32 to 210 deg F |
| Working Pressure | 150 psi |
| Brand | Caleffi |
| UNSPSC | 40101800 |
| Manufacturer | Caleffi |
| UPC | 8016615083996 |
| Manufacturer Part Number | 548052A |
501502A Automatic Air Vent, NA39589 Shut-off Valve and NA39588 Drain valve
ANAB Accredited ISO 9001|ANSI B16.5|BSI FM 21654|ICIM UNI EN ISO 9001:2008
