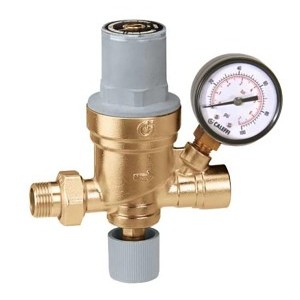

AutoFill™ Pre-Adjustable Automatic Filling Valve, 1/2 in, MNPT x FNPT, 230 psi, Brass Body
PartCLF553642A
MFG553642A
Description
Caleffi AutoFill™ Automatic Filling Valve, Pre-Adjustable, Series: 553, 1/2 in Nominal, MNPT x FNPT, 230 psi, 150 deg F, Media: Water/Glycol, Brass Body, NBR Seal, 4-3/4 in L
Price/Availability Accessible On Login
- Anti-scale with visual system pressure indicator
- Automatic fast-filling - Fast fills the system to set pressure then automatically shuts off the water feed, no levers to flip or valves to close
- Maintains stable pressure at pre-setting - Fill the system to a set pressure and maintain that pressure setting regardless of inlet pressure variations
- Anti-scale polymer materials - Prevents scaling on internal sliding surfaces, assuring stable pressure control and long operating life
- Built-in shut-off valve and check valve - Allows isolation of system from supply and check valve prevents loss of system pressure if the supply water drops below system pressure
- Pre-calibration - Before charging the system, use a screwdriver to turn dial to intended system pressure, downstream pressure gauge is not required
The automatic filling valve is a device consisting of a pressure reducing valve with compensating seat, visual system pressure setting indicator, an inlet filter, anti-scale internal parts, a shut-off valve (round knob on bottom) and a check valve. It is installed on the water inlet piping in sealed heating systems, and its main function is to maintain the pressure of the system at a set value, automatically filling up with water as required. The valve is pre-adjustable, meaning it can be set to the desired pressure value before the system charging phase. After installation, during the filling or topping-off phase, the water feed will stop when the set pressure is reached. This valve fills 50% faster than other valves. There are no levers to flip or valve to close.
| Nominal Size | 1/2 in |
| End Style | Union MNPT x FNPT |
| Body Material | Brass |
| Dimensions | 4-3/4 in L |
| Media | Water/Glycol |
| Pressure Rating | 230 psi |
| Series | 553 |
| Softgoods Material | NBR Seal |
| Temperature Rating | 150 deg F |
| Type | Pre-Adjustable |
| Brand | Caleffi |
| UNSPSC | 40141600 |
| Manufacturer | Caleffi |
| UPC | 8016615504927 |
| Manufacturer Part Number | 553642A |
Manual Shut-Off Valve, Strainer, Check Valve and 0 to 60 psi Pressure Gauge
2 Years
ASSE 1012|CSA B64.3|FM 21654|ICIM Certified|ISO 9001
