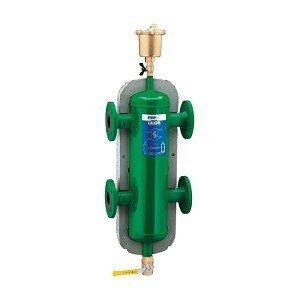

NA549 Hydraulic/Air/Dirt Separator, 6 in, Flange, Steel
PartCLFNA549150A
MFGNA549150A
Description
Caleffi HydroCal™ Hydraulic Separator, 3-in-1, Series: NA549, 6 in Nominal, Flange, 150 psi Working, 380 gpm, 50 % Maximum Percentage of Glycol, Polyurethane Foam Inner/Embossed Aluminum Outer Insulation, Steel, 25 in W
Price/Availability Accessible On Login
- Combination air, dirt and hydraulic separator that combines high performance air and dirt removal with hydraulic separation
- Stainless steel internal coalescing mesh
- Rigid closed cell expanded polyurethane foam
The Caleffi HydroCal™ combination hydraulic, air and dirt separator is a device that combines high performance air and dirt removal with hydraulic separation. Primary and secondary circuits connected to it become hydraulically decoupled thus eliminating pump conflict. A proven, time tested stainless steel internal coalescing element continuously and automatically eliminates all entrained air, including microbubbles, in the system. Air discharge capacity is very high. Overtime, dirt particles as tiny as 5 microns are captured and collected away from the flow stream. The 3-in-1 high performance functionality of the HydroCal™ saves system installation and maintenance cost as there is no need to include separate air and dirt separators. It can be used on either hot or chilled water systems.
| Type | Hydraulic/Air/Dirt |
| Series | NA549 |
| Nominal Size | 6 in |
| End Style | Flange |
| Material | Steel |
| Connection Type | ANSI 150 lb Raised Face Flange |
| Dimensions | 25 in W |
| Flow Rate | 380 gpm |
| Insulation Material | Polyurethane Foam Inner/Embossed Aluminum Outer |
| Maximum Percentage of Glycol | 50 % |
| Working Pressure | 150 psi |
| Brand | Caleffi |
| UNSPSC | 40161700 |
| Manufacturer | Caleffi |
| UPC | 8016615307528 |
| Manufacturer Part Number | NA549150A |
ANAB Accredited ISO 9001|ANSI B16.5|ASME/CRN Specified|BSI FM 21654|ICIM UNI EN ISO 9001:2008
