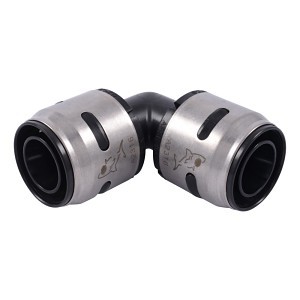

90 deg Elbow, 1 in, Push, Plastic
PartEVO91
MFGK260WP2
Description
Sharkbite®, K260WP2, Elbow, Fitting, Fitting/Connector: 90 deg Elbow, 1 in Nominal, Push-to-Connect End Style, 200 psi Pressure, 200 deg F, Acudel
Price/Availability Accessible On Login
- Compatible with PEX pipe only
- No crimp / clamp / PEX rings or special tools required
- Green visual indicator shows PEX pipe is inserted to the proper depth
- Approved for underground and behind-the-wall applications with no access panels
- Made in USA
- 25-year system warranty when used with SharkBite PEX pipe
- Patent pending
SharkBite EvoPEX is an innovative pushto-connect fitting designed for new construction and re-pipe applications. Engineered as a more efficient alternative to tool-based pipe joining methods, SharkBite EvoPEX improves efficiency, minimizes lost time on the job and mitigates risk.
| Fitting/Connector Type | 90 deg Elbow |
| Nominal Size | 1 in |
| End Style | Push |
| Material | Plastic |
| Domestic/Import | Import |
| Pressure Rating | 200 psi |
| Temperature Rating | 200 deg F |
| Brand | Sharkbite® |
| Package Width | 2.58 in |
| Package Height | 1.44 in |
| Package Length | 3.37 in |
| Country of Origin | US |
| Manufacturer | Reliance Worldwide Corporation |
| UPC | 697285053304 |
| Manufacturer Part Number | K260WP2 |
25 Years
ASSE 1061|ASTM F877-2011|CSA B137.5|ASTM E84|CAN/ULC S102.2|ASTM E119|CAN/ULC S101|NSF/ANSI 14|NSF/ANSI/CAN 61|NSF/ANSI/CAN 372
For underground and behind-the-wall applications with no access panels
Price/Availability Accessible On Login
Sharkbite®90 deg Elbow, 1 in, Push, Plastic
