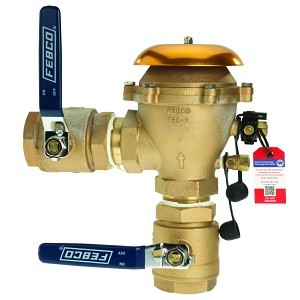

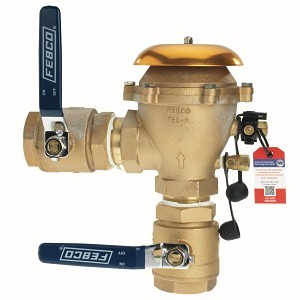

765 Reduced Pressure Backflow Preventer, 2 in, FNPT, Bronze
PartFBO7652
MFGT765HBV
Description
Febco®, T765HBV, Pressure vacuum breaker with Freeze sensor, N-Pattern, Series: 765, 2 in Nominal, NPT End Style, 150 psi Pressure, 32 to 140 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Vacuum Breaker Backflow, Rough Bronze, Import
Notice
Price/Availability Accessible On Login- Internal parts serviceable inch line from top of unit
- Bronze body for durability
This 2 inch pressure vacuum breaker backflow preventer is used to protect against health hazard and non-hazard backsiphonage of toxic or non-toxic liquids in industrial plants, cooling towers, laboratories, laundries, swimming pools and irrigation systems. It has a bronze body, spring loaded check valve, air relief valve with opening port, two resilient seated shutoffs and test cocks, and NPT end connections. This assembly meets the specifications of the USC FCCCHR Manual. The maximum working pressure is 150 psi (10.3 bar) and temperature range is 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C). The pressure vacuum breaker includes a freeze sensor for use with SentryPlus Alert(R) technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), irrigation management systems (IMS).
| Nominal Size | 2 in |
| End Style | FNPT |
| Body Material | Bronze |
| Series | 765 |
| Backflow Type | Vacuum Breaker |
| Ball Valve/Gate Valve Type | Quarter-Turn Ball Valve |
| Dimensions | 12-1/4 in L x 12-1/2 in H |
| Domestic/Import | Import |
| Finish | Rough Bronze |
| Pressure Rating | 150 psi |
| Temperature Rating | 32 to 140 deg F |
| Type | N-Pattern |
| Brand | Febco® |
| Country of Origin | CN |
| Manufacturer | Watts Water Technologies |
| UPC | 643925582888 |
| Manufacturer Part Number | T765HBV |
Freeze sensor
1 Year
ASSE 1020|CSA B64.1.2|UPC
Designed for minimum head loss
