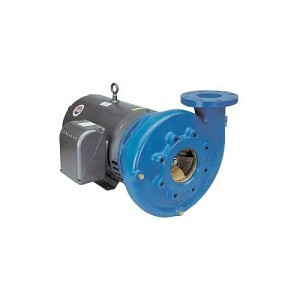

Pump End Only Centrifugal Pump, 4 x 3 in, Bronze Fitted
PartGLD14BFK1
MFG14BFK1
Description
Goulds End-Suction Flanged Pump, 1-Stage Close-Coupled, Series: 3656 M-Group, 4 in Inlet, 3 in Outlet, 7-1/2 hp Power, 115 to 230 V AC, 1 ph, 200 psig Maximum, 1.15 Service Factor, Enclosed Impeller, 250 deg F, Open Drip-Proof Enclosure, Ball Bearing, Bronze Fitted, 33-1/4 in W Dimensions
Price/Availability Accessible On Login
- Back pull-out to reduce maintenance down time
- Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency
- Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life
- 125 lb ANSI flange suction/discharge connections and casing rotation for piping connection versatility
The series 3656/3756 are single stage, end suction, centrifugal pumps for general liquid transfer, booster applications, irrigation and general service pumping. Pumps are available in three different materials of construction- all iron, bronze-fitted and all bronze ("S" group only).
| Type | Pump End Only |
| Material | Bronze Fitted |
| Inlet Size | 4 in |
| Outlet Size | 3 in |
| Bearing Type | Ball |
| Dimensions | 33-1/4 in W |
| Horsepower | 7.5 hp |
| Impeller Type | Enclosed |
| Maximum Pressure | 200 psi |
| Series | 3656 M-Group |
| Service Factor | 1.15 |
| Temperature Rating | 250 deg F |
| Brand | Goulds |
| UNSPSC | 40151566 |
| Country of Origin | US |
| Manufacturer | Xylem |
| UPC | 697666162915 |
| Manufacturer Part Number | 14BFK1 |
1-Phase NEMA JM Motor
1 Year Limited
ANSI/NSF 61/372|CSA Certified
Booster Service, Commercial Water, Spraying Systems, Irrigation, Water Circulation, Liquid Transfer and General Purpose Pumping
Price/Availability Accessible On Login
GouldsPump End Only Centrifugal Pump, 4 x 3 in, Bronze Fitted
