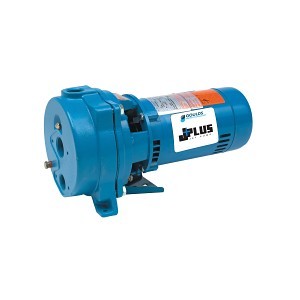

J+ Convertible Jet Pump, 1.5 hp, 120/240 VAC
PartGLDJ15BD
MFGJ15BD
Description
Goulds Belt Driven Convertible Jet Pump, Series: J+ Series, 26 gpm, 1-1/4 in NPT Inlet, 1 in NPT Outlet, 25 ft Maximum Suction Lift, 1-1/2 hp, 115/230 V AC, 1 ph, 60 psi Maximum, 3500 rpm Motor, Noryl® Impeller, 140 deg F, Ball Bearing, Cast Iron
Price/Availability Accessible On Login
- Convertible - May be used on shallow or deep well applications using appropriate Goulds water technology pumps fittings
- Serviceable - Back pull-out design for service without disturbing piping
- Two compartment motor for access to wiring and replaceable components
- Nozzle clean out plug in shallow well adapter
- Corrosion resistant, plastic tubing and fittings are easily removed for cleaning
- Premium O-ring design fittings need only be hand tight to seal
- Impeller - FDA compliant, glass filled Noryl™, corrosion and abrasion resistant
- Diffuser (Guidevane) - Bolt down Lexan® diffuser has stainless wear ring for extended performance in abrasive conditions
- Powered for continuous operation - Pump ratings are within the motor manufacturer's recommended working limits
- Can be operated continuously without damage
- Corrosion Resistant - electro-coat paint is baked on
- Protected mechanical seal - Diaphragm retains water in the casing to ensure the mechanical seal can never run dry
- Excellent air handling ability - After initial priming the pump has the ability to re-prime itself
| Type | Convertible Jet |
| Series | J+ |
| Power Rating | 1.5 hp |
| Voltage Rating | 120/240 VAC |
| Bearing Type | Ball |
| Flow Rate | 26 gpm |
| Horsepower | 1.5 hp |
| Impeller Type | Noryl® |
| Inlet Size | 1-1/4 in |
| Material | Cast Iron |
| Maximum Pressure | 60 psi |
| Maximum Suction Lift | 25 ft |
| Motor Speed | 3500 rpm |
| Outlet Size | 1 in |
| Phase | 1 |
| Temperature Rating | 140 deg F |
| Brand | Goulds |
| UNSPSC | 40151511 |
| Manufacturer | Xylem |
| UPC | 697666034991 |
| Manufacturer Part Number | J15BD |
CS/CUS Certified|FDA Compliant|UL 778
Homes, Farms, Cottages and Booster Service
Price/Availability Accessible On Login
GouldsJ+ Convertible Jet Pump, 1.5 hp, 120/240 VAC
