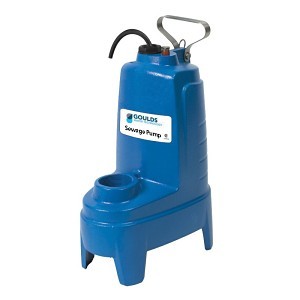

PV Sewage Pump, 2 in Outlet, 1/2 hp, 120 VAC, 1 ph, 20 ft L Cord
PartGLDPV51MF
MFGPV51MF
Description
Goulds Submersible Sewage Pump, Series: PV Series, 100 gpm, 2 in NPT Outlet, 22 ft Maximum Head, 1/2 hp, 115 VAC, 13 A, 60 Hz Frequency, 1 ph ph, 3400 rpm Motor, SJTW Cord, Vortex Impeller, 104 deg F, Heavy Duty Ball Bearing, Cast Iron, 10.8 in L x 6.8 in W x 15.12 in H Dimensions
Price/Availability Accessible On Login
- Corrosion-resistant construction
- Thermoplastic impeller and cover
- Upper sleeve and lower Heavy duty ball bearing construction
- Motor is permanently lubricated for extended service life
- Powered for continuous operation - Pump is designed for continuous operation All ratings are within the motor manufacturers recommended working limits
- Vortex impeller is recessed to allow free flow through casing
- All ratings are within the working limits of the motor
- 20 ft Replaceable power cord, Heavy duty 16/3 SJTW with NEMA three prong, 115 V grounding plug
- Complete unit is heavy duty, portable and compact
- Mechanical seal is carbon, ceramic, BUNA and stainless steel
- Stainless steel fasteners
- Class B insulation
- 2 in maximum sphere solid handling
- Plug, no switch
- Permanent split capacitor motor
| Power Rating | 1/2 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Outlet Size | 2 in |
| Cord Length | 20 ft |
| Series | PV |
| Amperage Rating | 13 A |
| Bearing Type | Heavy Duty Ball |
| Cord Type | SJTW |
| Dimensions | 10.8 in L x 6.8 in W x 15.12 in H |
| Flow Rate | 100 gpm |
| Frequency Rating | 60 Hz |
| Horsepower | 1/2 hp |
| Impeller Type | Vortex |
| Material | Cast Iron |
| Maximum Head | 22 ft |
| Motor Speed | 3400 rpm |
| Temperature Rating | 104 deg F |
| Brand | Goulds |
| UNSPSC | 40151517 |
| Manufacturer | Xylem |
| UPC | 697666432728 |
| Manufacturer Part Number | PV51MF |
CSA 22.2 108|UL 778 Standards by Canadian Standards Association file #LR38549
Residential Sewage Systems, Heavy-Duty Sump/Dewatering and Water Transfer
