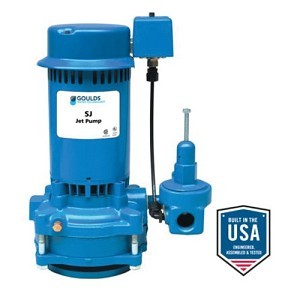

SJ Shallow Well Jet Pump, 1 hp, 120/240 VAC
PartGLDSJ10
MFGSJ10
Description
Goulds Jet Pump, Deep Well, Series: SJ Series, 16 gpm, 1-1/4 in NPT Inlet, 1 in NPT Outlet, 1 hp, 115/230 VAC, 60 Hz, 1 ph, 3500 rpm Motor, 140 deg F, Domestic
Price/Availability Accessible On Login
- Specifically designed to deliver high capacities at deeper settings
- Stainless steel pump shaft - Hex design provides positive drive for impellers and eliminates clearance adjustments
- Can be taken apart for service by removing four bolts
- Glass filled thermoplastic impellers
- Stainless steel wear rings and cover plates
- Electro-coat paint process applied inside and out and then baked on
- Pump is designed for continuous operation
- All ratings are within the motor manufacturers recommended working limits
- Top mounted vent plug allows air to escape from seal cavity during initial priming
- Built-in overload with automatic reset
- Stainless steel shaft
- Clockwise rotation when viewed from motor end
- AS4 30 to 50 psi pressure switch
Type | Shallow Well Jet |
Series | SJ |
Power Rating | 1 hp |
Voltage Rating | 120/240 VAC |
Domestic/Import | Domestic |
Flow Rate | 16 gpm |
Frequency Rating | 60 Hz |
Horsepower | 1 hp |
Inlet Size | 1-1/4 in |
Motor Speed | 3500 rpm |
Outlet Size | 1 in |
Phase | 1 |
Temperature Rating | 140 deg F |
Brand | Goulds |
UNSPSC | 40151500 |
Country of Origin | US |
Manufacturer | Xylem |
UPC | 697666006493 |
Manufacturer Part Number | SJ10 |
Pump with Integral Shallow Well Jet (Nozzle and Venturi), Motor, Pressure Switch and Tubing
CSA Certified|NEMA Standard|UL Listed
Home, Cottage and Farm
