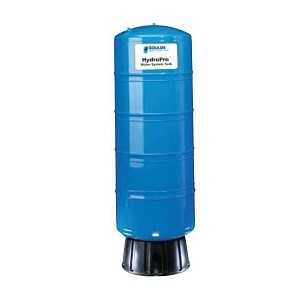

HydroPro® Hydropneumatic Tank, 13.9 gal, 15-3/8 in Dia, 125 psi, Blue
PartGLDV45
MFGV45
Description
Goulds HydroPro® Diaphragm Tank, Stand, FNPT Discharge Connection Type, 1 in Discharge, 15-3/8 in Overall Dia, 24-15/16 in Height, 13.9 gal, Fusion Bonded Polymeric Liner, 125 psi, 38 psi Precharge, Deep Drawn Steel, Blue
Price/Availability Accessible On Login
Documentation
- Rugged, impact resistant exterior coatings
- Holds up under severe conditions
- Tamper proof mechanical-fit air valve
- No heat distortion from brazing, recessed to prevent damage during shipping
- Deep drawn steel shells: Provide maximum material strength
- Steel inner shell and insert
- Heavy duty parabolic diaphragm
- Rigid polypropylene liner
- Patented positive retention system
- Stainless steel system connection
- Securely fastens diaphragm and liner for years of reliable service
- Corrosion proof base
HydroPro tanks provide years of dependable water system storage and delivery service! The efficient design reduces pump on/off cycles, resulting in longer motor and switch life, and reduced power costs. Each tank is factory tested and 100% air and water tight.
| Capacity | 13.9 gal |
| Diameter | 15-3/8 in |
| ASME Yes/No | No |
| Pressure Rating | 125 psi |
| Series | HydroPro® |
| Color | Blue |
| Discharge Connection Type | FNPT |
| Discharge Outlet Size | 1 |
| Discharge Size | 1 in |
| Height | 24-15/16 in |
| Liner Material | Fusion Bonded Polymeric |
| Material | Deep Drawn Steel |
| Overall Diameter | 15-3/8 in |
| Precharge Rating | 38 psi |
| Type | Stand |
| Brand | Goulds |
| UNSPSC | 40151700 |
| Manufacturer | Xylem |
| UPC | 697666351319 |
| Manufacturer Part Number | V45 |
Limited
FDA Approved|NSF/ANSI 61-G
Home, Cottage and Farm Use
