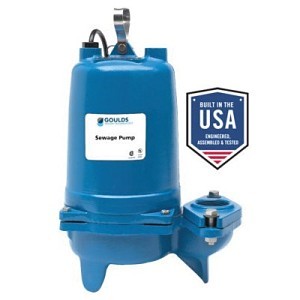

WSBF Manual Sewage Pump, 2 in Outlet, 1/3 hp, 120 VAC, 1 ph, 20 ft L Cord
PartGLDWS0311BF
MFGWS0311BF
Description
Goulds Sewage Pump, Series: WS_BF, 185 gpm, 2 in NPT Outlet, 38 ft Maximum Head, 1/3 hp, 115 V AC, 10.1 A, 60 Hz Frequency, 1 ph, 1750 rpm Motor, SJTOW/STOW Cord, Semi-Open Impeller, 104 deg F, Heavy Duty Ball Bearing, Cast Iron, 12-1/2 in L x 8-1/4 in W x 19 in H Dimensions
Price/Availability Accessible On Login
- Cast iron semi-open non-clog impeller
- Cast iron flanged volute type casing for maximum efficiency
- Corrosion-resistant 300 series stainless steel shaft
- Designed for continuous operation when fully submerged
- Impeller - Cast iron, semi-open, non-clog, dynamically balanced with pump out vanes for mechanical seal protection
- Casing is a cast iron flanged volute type for maximum efficiency
- Designed for easy installation on A10-20 slide rail or base elbow rail systems
- Mechanical seal: Silicon carbide VS silicon carbide sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers
- 140 deg F intermittent temperature
| Type | Manual |
| Power Rating | 1/3 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Outlet Size | 2 in |
| Cord Length | 20 ft |
| Series | WSBF |
| Amperage Rating | 10.1 A |
| Bearing Type | Heavy Duty Ball |
| Cord Type | SJTOW/STOW |
| Dimensions | 12-1/2 in L x 8-1/4 in W x 19 in H |
| Flow Rate | 185 gpm |
| Frequency Rating | 60 Hz |
| Horsepower | 1/3 hp |
| Impeller Type | Semi-Open |
| Material | Cast Iron |
| Maximum Head | 38 ft |
| Motor Speed | 1750 rpm |
| Temperature Rating | 104 deg F |
| Brand | Goulds |
| UNSPSC | 40151504 |
| Manufacturer | Xylem |
| UPC | 697666009258 |
| Manufacturer Part Number | WS0311BF |
CSA 22.2 108 Standards by Canadian Standards Association File #LR38549|UL 778
Homes, Sewage systems, Dewatering effluent, Water transfer, Light industrial and commercial applications
Price/Availability Accessible On Login
GouldsWSBF Manual Sewage Pump, 2 in Outlet, 1/3 hp, 120 VAC, 1 ph, 20 ft L Cord
