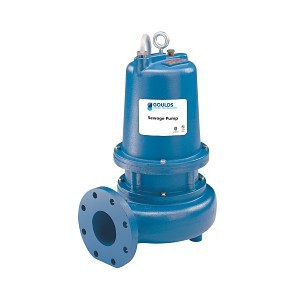

WS D4 Submersible Sewage Pump, 3 hp, 200 VAC, Gray Cast Iron, 16.6 A

GLDWS3038D4 MFG #: WS3038D4
Goulds Submersible Sewage Pump, Series: WS D4, 80 gpm, 4 in 125 lb Flanged Outlet, 40 ft Maximum Head, 50 ft Maximum Suction Lift, 3 hp, 200 VAC, 16.6 A, 60 Hz, 3 ph, 30 psi Maximum, 1750 rpm Motor, 20 ft 10/4 AWG Cord, Gray Cast Iron Non-Clogging Semi-Open Impeller, 104 deg F Continuous/140 deg F Intermittent, Ball Bearing, Gray Cast Iron, 15.75 in W x 12.62 in D x 28.28 in H
  • Alternate Part Number 1
  • Application
  • Brand
  • Includes
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Standards / Approvals
  • Web
  • Package Weight
3888D4
Sewage Systems, Flood and Pollution Control, Dewatering and Effluent, Hospitals, Trailer Courts , Hotels and Motels
Goulds
3-Phase NEMA 56 Oil-Filled Motor
PUMP SEW SBM WS D4 3HP 200VAC 16.6A 40FT
Cast Iron, 2-vane semi-iron, non-clog impeller with pump-out vanes for mechanical seal protection|Heavy duty cast iron, volute type casing for maximum efficiency|Designed for continuous operation|7 in Dia impeller|3 in maximum solids
Xylem
WS3038D4
ANSI Specified|ASTM A48 Class 30|cCSAus File #LR38549|CSA 22.2 108|UL 778
Sewage Pumps
205 lb
