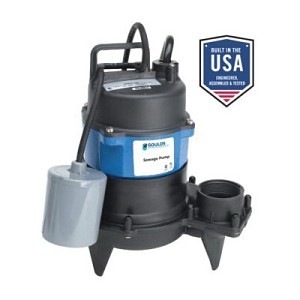

WW05 Automatic Sewage Pump, 2 in Outlet, 1/2 hp, 120 VAC, 1 ph, 20 ft L Cord
PartGLDWW0511AC
MFGWW0511AC
Description
Goulds Sewage Pump, Series: WW Series, 75 gpm, 2 in NPT Outlet, 18 ft Maximum Head, 1/2 hp, 115 V AC, 15 A, 60 Hz Frequency, 1 ph, 1550 rpm Motor, SJTW Cord, Full-Vortex Impeller, 104 deg F, Heavy Duty Ball Bearing, Cast Iron, 10-1/2 in L x 7-5/16 in W x 12-15/16 in H Dimensions
Price/Availability Accessible On Login
- Impeller is glass-filled thermoplastic full-vortex design with pump out vanes for mechanical seal protection
- Casing and base are rugged glass-filled thermoplastic design provides superior strength and corrosion resistance
- Cast iron motor housing for efficient heat transfer, strength and durability
- Thermoplastic motor cover with integral handle and float switch attachment points
- Upper and lower heavy duty ball bearing construction
- 140 deg F intermittent temperature
| Type | Automatic |
| Power Rating | 1/2 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Outlet Size | 2 in |
| Cord Length | 20 ft |
| Series | WW05 |
| Amperage Rating | 15 A |
| Bearing Type | Heavy Duty Ball |
| Cord Type | SJTW |
| Dimensions | 10-1/2 in L x 7-5/16 in W x 12-15/16 in H |
| Flow Rate | 75 gpm |
| Frequency Rating | 60 Hz |
| Horsepower | 1/2 hp |
| Impeller Type | Full-Vortex |
| Material | Cast Iron |
| Maximum Head | 18 ft |
| Motor Speed | 1550 rpm |
| Temperature Rating | 104 deg F |
| Brand | Goulds |
| UNSPSC | 40151504 |
| Manufacturer | Xylem |
| UPC | 697666011046 |
| Manufacturer Part Number | WW0511AC |
CSA 22.2 108|UL 778 Standards by Canadian Standards Association file #LR38549
Residential Sewage Systems, Dewatering and Water Transfer
