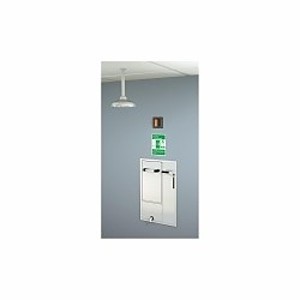

Eye/Face Wash and Shower Safety Station With Drain Pan and Daylight Drain, Stainless Steel Shower Head, Ceiling Mounting

GRDGBF2452 MFG #: GBF2452
Guardian Eye/Face Wash and Shower Safety Station, Stainless Steel Pipe, Stainless Steel Shower Head, 10 in Diameter Head, Ceiling Mounting, Specifications Met: ANSI Z358.1-2014, ADA Approved, cUPC 8116, Stainless Steel Fitting
  • Brand
  • Compliance
  • Country of Origin
  • Includes
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Standards / Approvals
  • Warranty
  • Web
Guardian
ADA Compliant
United States of America
ANSI Compliant Identification Sign
STATION SAF SH AND WASH SST SST 10IN SST
Cleanroom construction - unit is completely sealed and airtight|Covers conceal all openings on front of unit|Supply nipples on inlet and outlet of shower valve are sealed with grommets|All seams in cabinet are fully welded and polished|When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons|Shower head - 10 in dia stainless steel with 20 gpm flow control|Furnished with vertical supply pipe and ceiling escutcheon for mounting shower head at desired height below finished ceiling|Shower valve - 1 in IPS brass stay open ball valve with stainless steel "panic bar" actuator|Cover/drain pan - 16 ga stainless steel combination cover and drain pan|Grasping "panic bar" handle and opening cover pulls spray head assembly down from vertical to horizontal position, activating water flow|While unit is in operation, waste water is collected in drain pan and re-directed to daylight drain for drainage out the front of unit|Unit remains in operation until cover is returned to closed position|Eye face wash spray head assembly - two FS-Plus™ spray heads mounted on supply arms|Each spray head has individually adjustable flow control and filter to remove impurities from water flow|Eye face wash valve - 1/2 in IPS brass plug-type valve with O-ring seals|Furnished with in-line strainer to protect valve from debris and foreign matter|Type 304 stainless steel cabinet with flange featuring 3/8 in return for recessed mounting in wall|Unit fits in standard 3-5/8 in deep wall|Pipe and fittings - exposed pipe and escutcheon are brushed stainless steel|Supply - 1 in NPT male inlet
Guardian Equipment
GBF2452
ADA Compliant|ANSI Z358.1-2014|cUPC Listed|US Patent 5768721
2 Years
Eyewash & Shower Equipment
