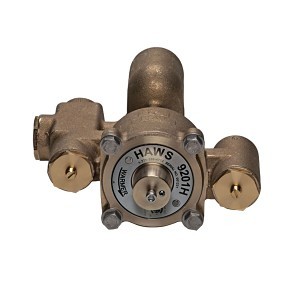

AXION® Emergency Tempering Thermostatic Mixing Valve, 1 in Inlet, 8 in L, Brass
PartHAW9201H
MFG9201H
Description
Haws® AXION® Thermostatic Mixing Valve, Lead Free Emergency Tempering, 1-1/4 x 1/4 in Nominal, FNPT, 125 psi, 85 deg F, 1 to 31 gpm Flow, Media: Hot/Cold Water, Brass Body, 8 in L x 4-1/2 in x 6-3/4 in H
Price/Availability Accessible On Login
- AXION®'s superior design and technology provide a complete safety solution for increased victim comfort
- Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
- Wax based thermostat technology for fast response time with proven highly reliable temperature control
- Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
- Modular lead free brass design with internal check stops
- Over-sized valve seats resist failures caused by foreign matter
- A new and efficient shuttle design eliminates valve sticking
- A custom funnel design improves temperature control at low flow rates
- Tempered water - High temperature limit is factory set to 87 deg F
- Cold water by-pass valves are closed during normal operation, regardless of flow rate
- Extended warranty
- Fully assembled
- In-line strainer
- Internal check stops
- System certified
- Thermostatic protection
Model 9201H (patent pending) is a lead-free thermostatic mixing valve that mixes hot and cold water to supply tempered water to emergency shower and eyewash fixtures requiring flow up to 31 gpm (117.3 L). Unit employs two paraffin filled thermostatic mixing elements. Lowest internal pressure drop where supply pressure is low and a high Cold Water Bypass flow rate of 20 gpm (75.7 L). The modular brass design with a one piece casting uses internal check stops, oversized valve seats, a shuttle design that eliminates valve sticking and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85 deg F (26 deg C). Maximum operating pressure: 125 psi (8.62 Bar). Temperature adjustment range 60 - 95 deg F (16 - 35 deg C). Maximum inlet temperature: 180 deg F (82 deg C). Recommended inlet temperature: 140 deg F (60 deg C). Minimum inlet temperature: 120 deg F (49 deg C) Inlets 1 in FNPT. Outlet 1-1/4 in FNPT.
| Type | Eyewash & Shower Thermal Protection Valve |
| Inlet Size | 1 in |
| Series | AXION® |
| Body Material | Brass |
| Dimensions | 8 in L x 4-1/2 in x 6-3/4 in H |
| End Style | FNPT |
| Flow Capacity | 1 to 31 gpm |
| Material | Brass |
| Media | Hot/Cold Water |
| Nominal Size | 1-1/4 x 1/4 in |
| Pressure Rating | 125 psi |
| Temperature Rating | 85 deg F |
| Brand | Haws® |
| Package Width | 7 in |
| Package Height | 8 in |
| UNSPSC | 40141600 |
| Package Length | 10 in |
| Country of Origin | US |
| Manufacturer | Haws |
| UPC | 611970358048 |
| Manufacturer Part Number | 9201H |
Limited Warranty
ASSE 1071|ANSI Z358.1|cCSAus Certified|Buy American Act Compliant|ANSI/NSF 372|ANSI/NSF 61-section 8|California Health and Safety Code 116875 (AB 1953)
