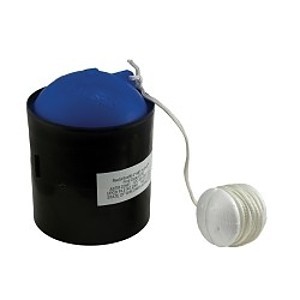

Horizontal Test Coupling, For Use With PVC/ABS Pipe, 4 in, ABS
PartHBS4100
MFG97052
Description
HubSett™ Test Coupling, Horizontal, For Use With: PVC/ABS Pipe, 4 in, ABS
Price/Availability Accessible On Login
- Holds pressure every time
- Safe to use
- No pump or special tools needed
- Test with air or water
- 12 ft cord
- Uniquely designed coupling and test device all-in-one, allows the building's drain waste and vent system to be connected to the sewer line prior to the initial test, easily removed with one quick pull on the release cord
The HubSett™ test coupling is a uniquely designed coupling and test device all in one. It replaces other test methods and allows the buildings drain waste and vent system to be connected to the sewer line prior to the initial test. Once the HubSett™ test coupling has been properly installed and inspected, the entire system maybe covered, allowing the builder to complete all groundwork from sidewalk to landscaping. Upon passing inspection, the HubSett™ test dome is easily removed with one quick pull on the release cord, allowing water to flow into the sewer. The HubSett™ test coupling now functions as any other coupling, and does not need to be removed. HubSett™ test couplings are available for horizontal testing. HubSett™ test couplings can be pre-assembled in cleanout fittings in the shop prior to taking them to the job site, to save assembly time in the field.
| Type | Test Plug |
| Nominal Size | 4 in |
| Domestic/Import | Domestic |
| Material | ABS |
| Specifications | 4 in |
| Suitable For Use With | PVC/ABS Pipe |
| Package Width | 4.5 in |
| Package Height | 5.75 in |
| UNSPSC | 40142500 |
| Package Length | 4.5 in |
| Country of Origin | US |
| Manufacturer | RectorSeal |
| UPC | 021449970525 |
| Manufacturer Part Number | 97052 |
Dome, Coupling and Float
ASTM D2661/D2665|ICC-ES PMG Listed|IGC 122-2005a|NSF 14|UPC Listed
Price/Availability Accessible On Login
Horizontal Test Coupling, For Use With PVC/ABS Pipe, 4 in, ABS
