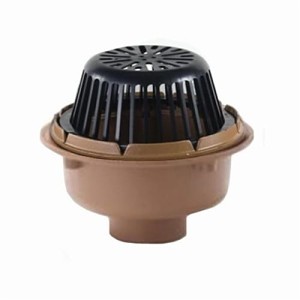

1310 Roof Drain Assembly, 12 in Dia, 3 in Outlet, No Hub, Cast Iron Dome
PartJRS13103CID
MFG1310Y03 (-CID)
Description
Smith® Roof Drain, General Purpose, Series: 1310, 3 in Outlet, No-Hub Connection, Cast Iron Drain, 12 in Dia Dimensions
Price/Availability Accessible On Login
- CID: cast iron dome
- Combined flashing clamp and gravel stop
- 71.5 sq-in free area
- Note: stated flow rates for roof drains are based on particular test piping configurations and dimensions
- Installed roof drain flow rates cannot be stated unless the attached piping configuration is known and the effects of the drainage calculated
Used in flat roofs of any construction where a medium sized drain is required. Flashing clamp holds flashing and roofing material without puncturing. Low profile dome protects sump and intercepts debris.
| Type | Roof Assembly |
| Diameter | 12 in |
| Outlet Size | 3 in |
| Connection Type | No Hub |
| Dome Material | Cast Iron |
| Deck Plate (Yes/No) | No |
| Sump Receiver (Yes/No) | No |
| Underdeck Clamp (Yes/No) | No |
| Water Dam (Yes/No) | No |
| Series | 1310 |
| Dimensions | 12 in Dia |
| Drain Material | Cast Iron |
| Brand | Smith® |
| UNSPSC | 40141700 |
| Manufacturer | Jay R. Smith Mfg. Co |
| UPC | 727753060074 |
| Manufacturer Part Number | 1310Y03 (-CID) |
