1/4 Turn Wall Hydrant, 3/4 x 1/2 in, MNPT x FNPT, 6 in THK Wall, 9-3/4 x 9-3/4 in Wall Opening

JRS5560QTSAP MFG #: 5560QT (-SAP)

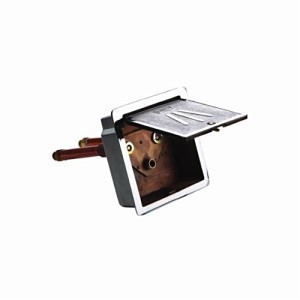

Smith® Wall Hydrant, 1/4 Turn, Series: 5560QT, 3/4 x 1/2 in Nominal, MNPT x FNPT, 6 in Wall Thickness, 9-3/4 x 9-3/4 in, T-Handle, Bronze Box, Bronze, Nickel Plated
  • Application
  • Brand
  • Compliance
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Standards / Approvals
  • Warranty
  • Web
For Hot And Cold Water and Irrigation Purposes Only
Smith®
Lead Law Compliant
HYDRANT WALL 3/4 X 1/2IN MNPT X FNPT 6IN
SAP: Short as possible|3/4 in hose connection|Bronze nickel plated quarter turn non-freeze Twin Temp hydrant with hose connection, "T" handle key and bronze box with chrome plated face|Note: recommended wall opening 9 3/4 in (250) x 9 3/4 in (250)|When ordering, specify wall thickness in 2 in increments as follows: 6, 8, 10, 12, 14, 16, 18, 20, 22 or 24|When wall clamp - WC is desired, increase wall thickness dimension by 2 in|For 6 in wall use 5560QT-SAP|All Jay R. Smith hydrants are manufactured with "NO-LEAD" brazing rings and USDA approved lubricants|The AB1953, california lead Law, and NSF/ANSI standard 61-2008 - drinking water system components are not applicable to Jay R. Smith hydrants as they do not convey/dispense water for human consumption through drinking or cooking
Jay R. Smith Mfg. Co
5560QT (-SAP)
USDA Approved
1 Year Limited
Hose Bibbs, Hydrants & Cocks
