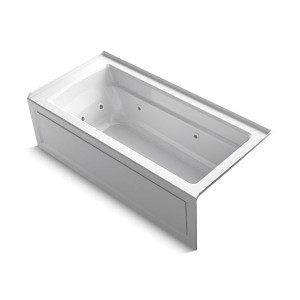

Archer® Alcove Bath Tub, ADA, 66 x 32 x 19 in, Right Hand Drain, White
PartKOHK1949RAWHT
MFG1949-RA-0
Description
Kohler® Bathtub, Archer®, Whirlpool Bath Therapy, Rectangular, 66 in Length, 32 in Width, 19 in Height, 66 gal Water, Right Drain Location, 1-1/2 in Drain, 50-3/8 x 19-5/8 in Bottom Basin/57-5/16 x 24-1/16 in Top Basin Bathing Well, 15-5/16 in Overflow Height, 8 Jets, 3-Wall Alcove Mount, Acrylic, White
Price/Availability Accessible On Login
- Single-speed whirlpool offers performance and value, with 8 fully adjustable jets
- Hydromassage flow and direction can be controlled at each jet
- Comfort Depth® design offers a convenient 19 in step-over height while retaining the same depth as a standard 21 in bath
- Molded lumbar support offers extra comfort while bathing
- Slotted overflow allows for deep soaking
- Integral Flange helps prevent water from seeping behind wall and simplifies alcove installation
- Textured bottom surface
- Coordinates with other products in the Archer® collection
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing deep, comfortable soaking as whirlpool jets relax away the day's tension. Kohler® ExoCrylic™ is the next generation of bathroom acrylics, featuring a lighter weight for easier installation and 90% fewer VOCs produced during manufacturing.
| Type | Alcove |
| Color Family | White |
| Overall Length Range | 66 to 66-15/16 in |
| Overall Width Range | 32 to 32-1/2 in |
| Height | 19 in |
| Drain Location | Right Hand |
| Collection | Archer® |
| ADA Compliance (Yes/No) | Yes |
| Finish/Color | White |
| Bath Therapy Type | Whirlpool |
| Bathing Well Size | 50-3/8 x 19-5/8 in Bottom Basin/57-5/16 x 24-1/16 in Top Basin |
| Drain Size | 1-1/2 in |
| Length | 66 in |
| Material | Acrylic |
| Mounting Type | 3-Wall Alcove |
| Number of Jets | 8 |
| Overflow Height | 15-5/16 in |
| Shape | Rectangular |
| Water Capacity | 66 gal |
| Width | 32 in |
| Brand | Kohler® |
| UNSPSC | 30181517 |
| Alternate Part Number 1 | K-1949-RA-0 |
| Country of Origin | US |
| Manufacturer | Kohler |
| UPC | 885612201867 |
| Manufacturer Part Number | 1949-RA-0 |
1 Year Limited
ADA Compliant|ASME A112.19.7/CSA B45.10|CARB P2|CSA B45.5/IAPMO Z124|CSA C22.2 #218.2|Greenguard UL 2818 Gold|ICC/ANSI A117.1|UL 1795
