Rite-Temp® Project Pack, 1/2-14 NPT/Direct C Inlet x 1/2-14 NPT/Direct C Outlet, 45 psi, 5 gpm, Brass Body
PartKOHKP8304KSL
MFGP8304-KSL-NA
Description
Kohler® Project Pack, Series: Rite-Temp®, 1/2-14 Universal NPT/Direct C Inlet Connection, 1/2-14 Universal NPT/Direct C Outlet, 45 psi, 5 gpm, Brass Body
Price/Availability Accessible On Login
- Service stops supplied loose (not factory installed in valve body) - ready for making sweat connections to valve inlets
- Service stops include integral check valves
- 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi
- Single lever design cycles from off through cold to hot
- Provides temperature regulation and automatic anti-scald protection
- 1-piece cartridge design simplifies installation and maintenance
- Adjustable high-temperature limit stop to control maximum water temperature
- Designed for use in standard, back-to-back and thin wall installations
- Forged de-zincification resistant brass body provides long term reliability and resistance to aggressive water conditions
The new Kohler® Rite-Temp® valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp® valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from Kohler®'s comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.
| Nominal Size | 1/2 in |
| End Style | C or MNPT |
| ADA Compliance (Yes/No) | No |
| Body Material | Brass |
| Connection Size | 1/2 in |
| Connection Type | C or MNPT |
| Flow Rate | 5 gpm |
| Inlet Connection | 1/2-14 NPT/Direct C |
| Outlet Connection | 1/2-14 NPT/Direct C |
| Pressure Rating | 45 psi |
| Series | Rite-Temp® |
| Type | Rough Valve |
| Brand | Kohler® |
| UNSPSC | 40141600 |
| Alternate Part Number 1 | K-P8304-KSL-NA |
| Country of Origin | US |
| Manufacturer | Kohler |
| UPC | 885612664914 |
| Manufacturer Part Number | P8304-KSL-NA |

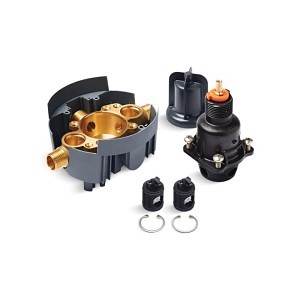

Valve Body With Service Stop, Pressure-Balance Cartridge, Rough-In Guide and Mud Guard
Limited Lifetime
ASME A112.18.1/CSA B125.1|ASSE 1016/ASME A112.1016/CSA B125.16
