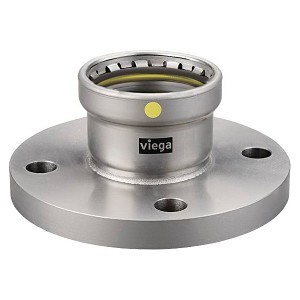

Gas Flange, 3 in, Press, Carbon Steel
PartMPGFLG3
MFG28880
Description
MegaPress® Adapter, Series: Model 6659.5XL, 3 in Nominal, Press x Flanged, 3.95 in Length, SCH 5 to 40, 200 psi, -40 to 180 deg F, Carbon Steel, Zinc Nickel Plated, 3.95 in L, Import
Price/Availability Accessible On Login
- Approved for more applications than any other carbon steel pipe press fitting system
- Suitable for use with ASTM SCH 5 to 40 carbon steel pipe in accordance with AHJ requirements
- Corrosion resistant zinc nickel coating
- Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
- Approved for underground applications, in accordance with code and local AHJ
- The same hanger and support requirements as threaded systems
- Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
- 125 psi for fuel gas/200 psi for other applications
Viega MegaPress®G is a carbon steel, cold press system designed for use in compressed air, fuel gas, and heating oil applications. Viega MegaPress®G fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 SCH 5 to SCH 40/STD carbon steel pipe. Viega MegaPress®G fittings for fuel gas or fuel oil systems shall be used with ASTM A53 SCH 40/STD carbon steel pipe. MegaPress®G is CSA LC4 approved for fuel oil and fuel gas installations.
| Fitting/Connector Type | Flange |
| Nominal Size | 3 in |
| End Style | Press |
| Material | Carbon Steel |
| Dimensions | 3.95 in L |
| Domestic/Import | Import |
| Finish | Zinc Nickel Plated |
| Length | 3.95 in |
| Pressure Rating | 200 psi |
| Schedule Rating | SCH 5 to 40 |
| Temperature Rating | -40 to 180 deg F |
| Brand | MegaPress®G |
| UNSPSC | 40171703 |
| Country of Origin | DE |
| Manufacturer | Viega |
| UPC | 691514288802 |
| Manufacturer Part Number | 28880 |
HNBR Sealing Element
10 years
ABS Standard|ASME B31|ASTM A53/A106/A135/A795|CRN: 0A14541.5 A/B/C|CSA: ANSI LC 4a/CSA 6.32a|DNV-GL|IAPMO: ANSI LC 4a/CSA 6.32a|IAPMO National Standard Plumbing Code (NSPC)|IAPMO Uniform Mechanical Code (UMC)|IAPMO Uniform Plumbing Code (UPC)|ICC-ES: ANSI LC 4a/CSA 6.32a|ICC International Fuel Gas Code (IFGC)|ICC International Mechanical Code (IMC)|ICC International Residential Code (IRC)|Lead Law Compliant|Lloyd's Register CAN/CSA-B149.1|NACE RP0169-2002|NFPA 54/Z223: National Fuel Gas Code|NFPA 58: Liquefied Petroleum Gas Code|UMC Chapter 13 Section 1312.1.3|UPC Listed
For natural/fuel gas, lubricants/oils, fuel oils, compressed air industrial gases and vacuum
