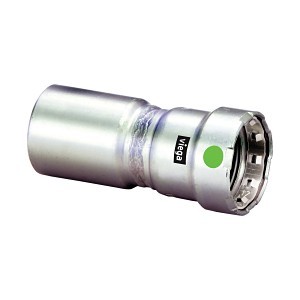

Adapter, 3/4 x 1/2 in, Fitting x Press, 316/316L Stainless Steel
PartMPS6B3412
MFG90355
Description
MegaPress® Reducer, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, Fitting x Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 2.95 in L, Import
Price/Availability Accessible On Login
- Patented Viega Smart Connect® makes secure connection in less than 7 sec
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
- No welding, grinding or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
- Wide range of fitting configurations
- Eliminate threading and welding
- No fire watches, hot work permits or gas freezing
- Makes secure press connections from 1/2 to 2 in less than seven seconds
- Compatible with existing press tools
- 316 stainless carries an NSF-16 potable water rating
- Model 5115.1
Viega MegaPress® Stainless 316 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for many commercial and industrial applications. MegaPress® Stainless 316 fittings utilize a versatile EPDM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 316 system can stand up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.
| Fitting/Connector Type | Adapter |
| Nominal Size | 3/4 x 1/2 in |
| End Style | Fitting x Press |
| Material | 316/316L Stainless Steel |
| Domestic/Import | Import |
| Dimensions | 2.95 in L |
| Pressure Rating | 200 psi |
| Temperature Rating | 0 to 250 deg F |
| Brand | MegaPress® |
| Package Width | 0.75 in |
| Package Height | 1 in |
| UNSPSC | 40172607 |
| Package Length | 2.949 in |
| Country of Origin | DE |
| Manufacturer | Viega |
| UPC | 691514903552 |
| Manufacturer Part Number | 90355 |
EPDM Sealing Element
Limited
ASTM A312/A403|CRN 13492.5 A/B|IAPMO to IAPMO PS117|ICC-LC1002|TSSA/ASME B31.1/B31.3/B31.9|NSF/ANSI 61/372
Commercial and Industrial
Price/Availability Accessible On Login
MegaPress®Adapter, 3/4 x 1/2 in, Fitting x Press, 316/316L Stainless Steel
