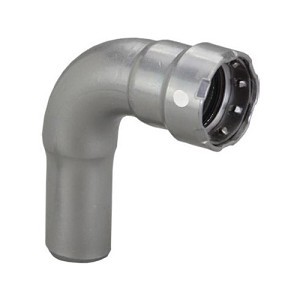

Carbon Steel Street 90 deg Elbow, 1-1/4 in, Fitting x Press
PartMPWS9114
MFG84890
Description
MegaPress®, 84890, Street Elbow, Series: Model 5916.1, Fitting/Connector: 90 deg Street Elbow, 1-1/4 in Nominal, Press x FTG End Style, 200 psi Pressure, 14 to 284 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 4.04 in L Dimensions, Import
Price/Availability Accessible On Login
- Approved for more applications than any other carbon steel pipe press fitting system
- Corrosion resistant zinc nickel coating
- Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
- Approved for underground applications, in accordance with code and local AHJ
- The same hanger and support requirements as threaded systems
- Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
MegaPress® FKM is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air, and fire sprinkler applications. MegaPress FKM fittings in sizes from 1/2 to 4 in are offered in configurations including: elbows, couplings, no-stop couplings, reducers, tees, reducing tees, adapters, unions, caps, and flanges.
| Fitting/Connector Type | 90 deg Elbow |
| Nominal Size | 1-1/4 in |
| Type | Street |
| End Style | Fitting x Press |
| Pressure Class | Standard |
| Domestic/Import | Import |
| Dimensions | 4.04 in L |
| Finish | Nickel Plated/Zinc Plated |
| Material | Carbon Steel |
| Pressure Rating | 200 psi |
| Series | Model 5916.1 |
| Temperature Rating | 14 to 284 deg F |
| Brand | MegaPress® |
| UNSPSC | 40183100 |
| Country of Origin | DE |
| Manufacturer | Viega |
| UPC | 691514848907 |
| Manufacturer Part Number | 84890 |
FKM Sealing Element
Limited
ASME B31.1/B31.3/B31.9|ABS Approved|CRN #OA14541.5|DNV Listed|FM Approved|GL Listed|International Plumbing Code|International Mechanical Code|LR Listed|NFPA 54/58|UL 213|Uniform Plumbing Code|Uniform Mechanical Code|UL Listed
For use in chilled water, hydronic heating, compressed air and fire sprinkler applications and ASTM SCH 5 to SCH 40 carbon steel pipe
