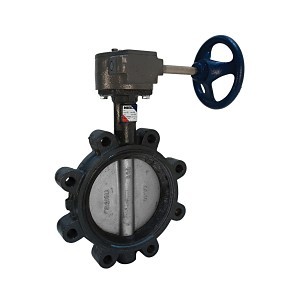

LD-3010-5 Lug Style Butterfly Valve, 10 in, Ductile Iron Body, Domestic

NIBLD3010510 MFG #: NLG210M
NIBCO® Butterfly Valve, Lug Style, Series: LD-3010-5, 10 in Nominal, 125/150 lb, Media: Water, Manual Gear Actuator, Ductile Iron Body, Ductile Iron Disc, 416 Stainless Steel (Stem) Stem & Pin Material, EPDM, Domestic
  • Application
  • Brand
  • Compliance
  • Country of Origin
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Package Dimensions
  • Package Volume
  • Package Weight
  • Standards / Approvals
  • Warranty
  • Web
For commercial and some light industrial process applications, including HVAC and vacuum services
NIBCO®
Proposition 65 Warning
United States of America
VLV BFLY 10IN DUCTILE IRON DOM 250PSI
Stainless steel stem with copper bushings|Geometric drive|Extended neck|Operating mechanism - Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation|Not recommended for steam service|Install between Std ASME Class 125/150 flanges 150 psi bi-directional dead end service rating without a downstream flange|Do not install between AWWA C115/A21.5 type flanges|EPDM seat liner/seal
NIBCO Inc.
NLG210M
H: 10.5 in x W: 16.25 in x L: 27.38 in
3.05 cu-in
94 lb
MSS SP-67|MSS SP-25|US Coast Guard Category A|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
5 Years Limited
Butterfly Valves
