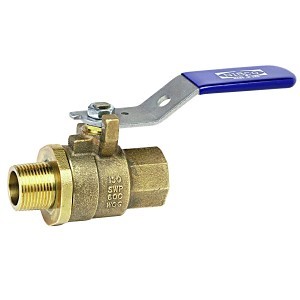

2-Piece Ball Valve, 1/4 in, FNPT x MNPT, Full Port, Plated Brass Ball, Bronze
PartNIBMTT5857014
MFGNL95G04
Description
NIBCO® Ball Valve, 2-Piece, Series: MTT-585-70, 1/4 in Nominal, MNPT x FNPT, 600 psi, 400 deg F, Full Port, Media: Air/Gas/Water, 0.38 in Orifice, Standard Lever Handle Actuator, Polished Chrome Brass Ball, 2.41 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, Silicon Bronze Trim, PTFE, Domestic
Notice
Price/Availability Accessible On Login- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blow-Out proof stem
- Dezincification resistant
- Maximum temperature rating 400 deg F
- Male x female threaded end connections
The NIBCO® 2-Piece bronze ball valve features male thread end connection by female thread body connection for easy piping transition installation. The valve's reinforced PTFE seat ring and brass hard chrome plated ball exhibit high chemical resistance properties and is recommended for many high pressure applications. The NIBCO® full port bronze ball valve provides bubble-tight shut-off at 600 psi. The 2-Piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. The bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. Please refer to NIBCO® technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® INC. 5-year 125% limited warranty.
| Nominal Size | 1/4 in |
| End Style | FNPT x MNPT |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Bronze |
| Ball Material | Plated Brass |
| Actuator Type | Standard Lever |
| Body Material | Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 2.41 in |
| Media | Air/Gas/Water |
| Orifice Size | 0.38 in |
| Pressure Rating | 600 psi |
| Series | MTT-585-70 |
| Softgoods Material | PTFE |
| Temperature Rating | 400 deg F |
| Top to Inlet Center | 1-3/4 in |
| Trim Material | Silicon Bronze Stem |
| Brand | NIBCO® |
| Package Width | 3.25 in |
| Package Height | 3.312 in |
| UNSPSC | 40141607 |
| Package Length | 6.5 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923796547 |
| Manufacturer Part Number | NL95G04 |
5 Years Limited
MSS SP-110|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Commercial and Light Industrial Process Applications that may Include HVAC, Hot and Cold Domestic Water, Low Pressure Steam, Compressed Air, LP Gas and Natural Gas
